Build a drone: canopy and electronics

The canopy covers the electronics on the top plate. Its honeycomb and the logo on its hatch measure the geometry they work on, so both are async functions that await what they measure.

  1. The canopy is lofted through five rounded rectangles that narrow as they rise; a list of lists gives each one's height, size and corner radius, and a for each loop makes them. The main stack sets it on the top plate and paints it midnight blue.

    • Make the function canopy:
      • set wires to empty list
      • for each item section in [[0, 140, 90, 26, 4], [12, 132, 84, 24, 6], [22, 110, 70, 19, 9], [29, 76, 48, 13, 10], [32, 52, 36, 10, 10]]:
        • set wires to add item(list wires, item fillet 2d(shape rectangle wire(width get item(list section, index 2, clone false), length get item(list section, index 1, clone false), center point xyz(0, get item(list section, index 0, clone false), get item(list section, index 4, clone false)), direction vector xyz(0, 1, 0)), radius get item(list section, index 3, clone false)), clone false)
      • return loft(shapes wires, make solid true)
    • Add a stack under the others:
      • set shell to canopy()
      • set paint to look("paint", #1f2b4d, 0.1, 0.25, #000000, #f2f2f2, 6)
      • draw any async no return(entity translate(shape shell, translation vector xyz(0, 16, 0)), options paint)
    • Run it with Run The Code.

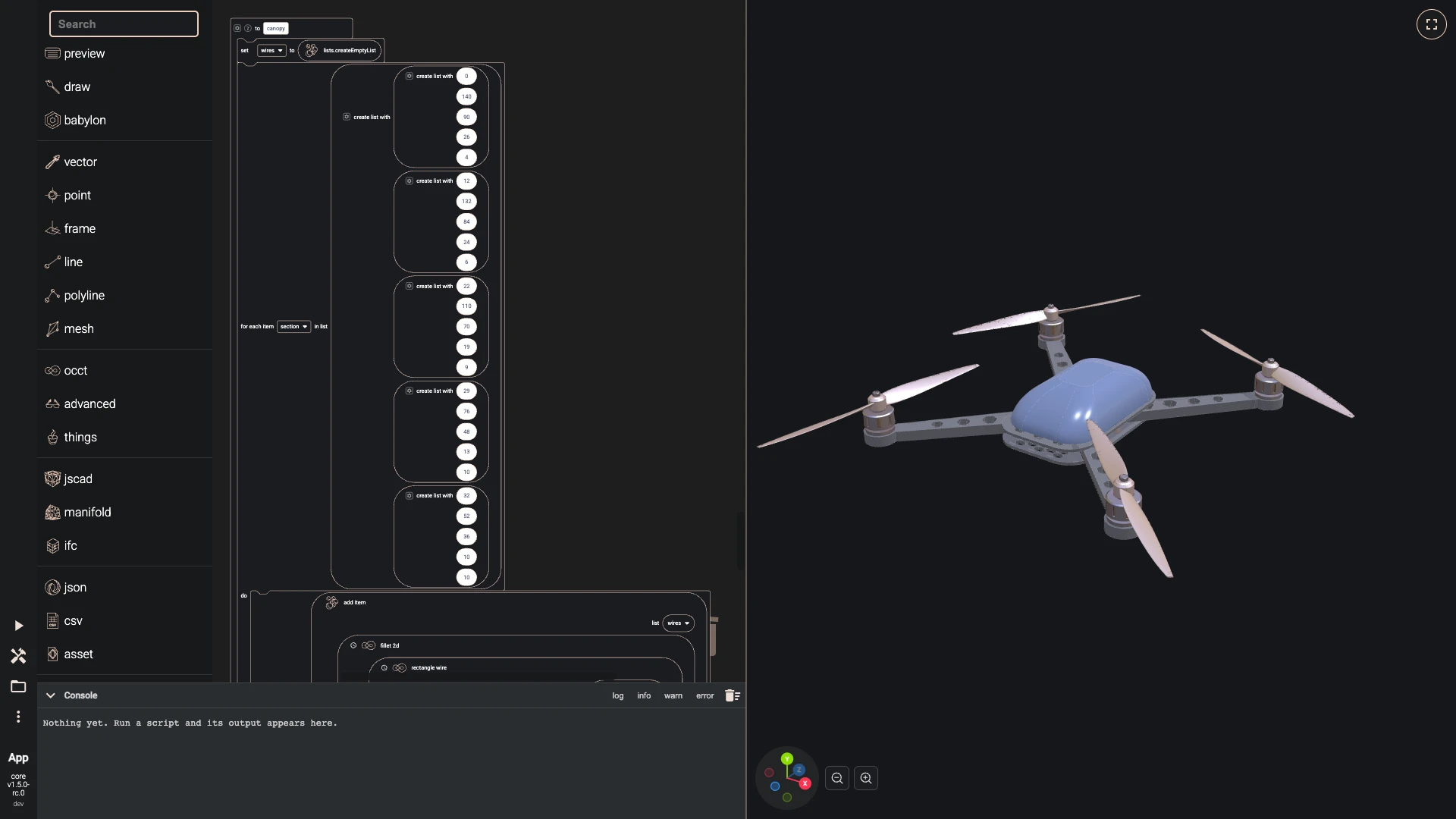

    Build a drone in the Blockly editor, canopy and electronics: The canopy is lofted through five rounded rectangles that narrow as they rise; a list of lists gives each one's height, size and corner radius, and a for each loop makes them.

  2. A honeycomb is traced on the canopy's sides by an async function. It awaits the canopy's faces and their areas, then a count loop awaits each face's normal, leaves out the top and the bottom, and divides each side into hexagon wires, eight across the long sides and five across the short ones. The wires are drawn as white lines over the canopy.

    • Make the function honeycomb with the inputs shell:
      • set middle to await get solid center of mass(shell)
      • set faces to await get faces(scale 3d(shape shell, scale vector xyz(1.02, 1.02, 1.02), center point xyz(get item(list middle, index 0, clone false), 0, get item(list middle, index 2, clone false))))
      • set areas to await get faces areas(faces)
      • set largest side to get item(list sort number(list get sub list(list areas, index start 0, index end (list length(list areas, clone false) - 2), clone false), order asc false, clone false), index 0, clone false)
      • set cells to empty list
      • count with i from 0 to (list length(list faces, clone false) - 1) by 1:
        • set normal to await normal on uv(shape get item(list faces, index i, clone false), param u 0.5, param v 0.5)
        • if (absolute get item(list normal, index 1, clone false) < 0.9):
          • set new cells to await subdivide to hexagon wires(shape get item(list faces, index i, clone false), nr hexagons u (if (get item(list areas, index i, clone false) > (largest side × 0.7)) then 8 else 5), nr hexagons v 3, flat u false, scale pattern u [0.8], scale pattern v [0.8], fillet pattern [0.35], offset from border u 0.05, offset from border v 0.08)
          • set cells to concatenate(lists [cells, new cells], clone false)
      • return make compound(cells)
    • Snap under the block draw any async no return(entity translate(shape shell, translation vector xyz(0, 16, 0)), options paint):
      • set canopy cells to honeycomb(shell)
      • draw any async no return(entity translate(shape canopy cells, translation vector xyz(0, 16, 0)), options look("honeycomb", #1f2b4d, 0.1, 0.25, #000000, #f2f2f2, 8))
    • Run it with Run The Code.

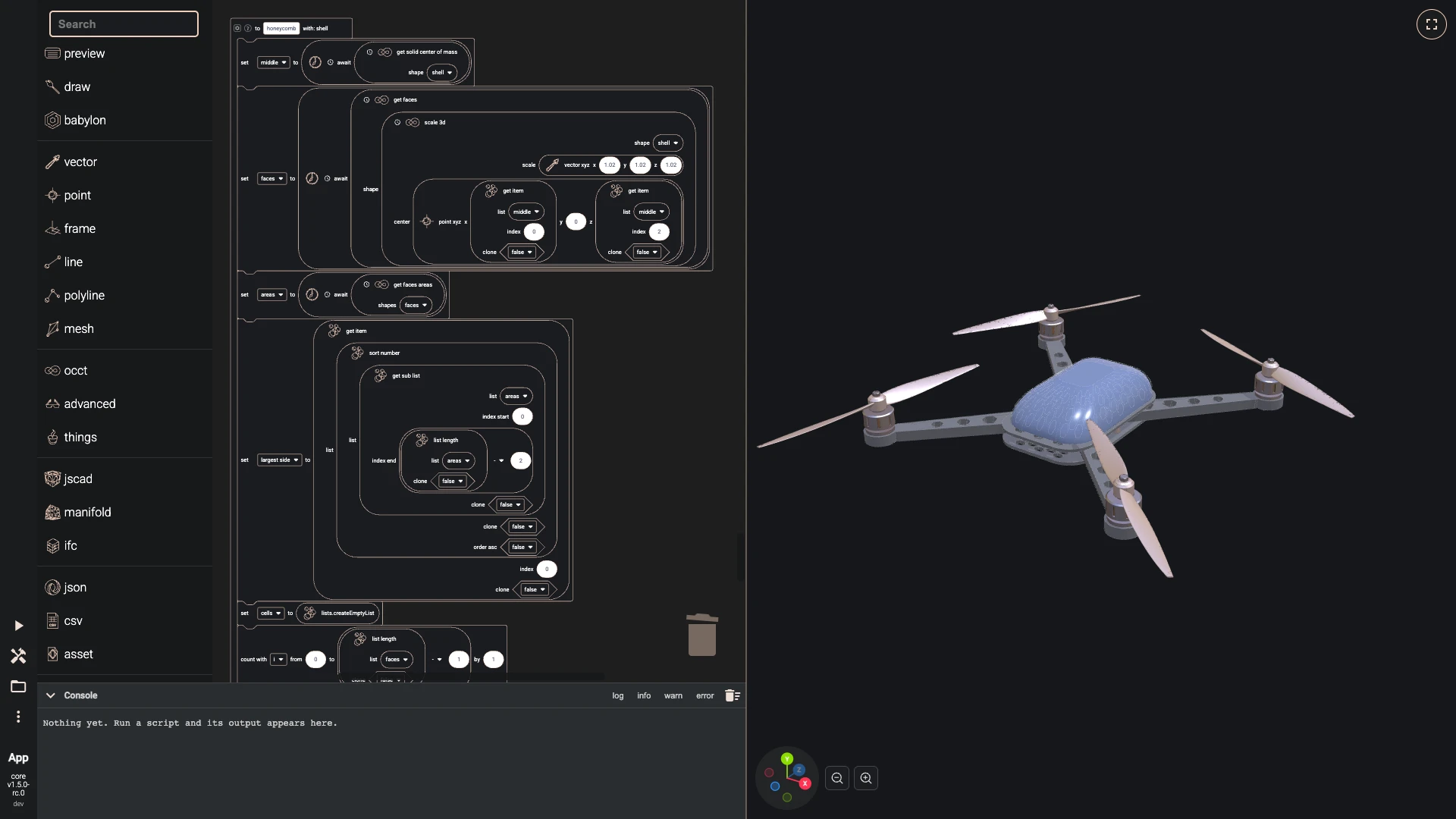

    Build a drone in the Blockly editor, canopy and electronics: A honeycomb is traced on the canopy's sides by an async function.

  3. A hatch closes the top, with the bitbybit logo in it. logo on hatch fetches the logo's STEP file from the CDN, reads it into a shape and awaits its bounding box, so it can scale it to 26 millimetres and centre it on the hatch. Extruded, the logo is cut through the hatch, and a copy a little smaller sits in the cut as a white emblem.

    • Make the function hatch lid:
      • return extrude(shape face from wire(shape fillet 2d(shape rectangle wire(width 34, length 50, center point xyz(0, 48, 10), direction vector xyz(0, 1, 0)), radius 9), planar true), direction vector xyz(0, 1.4, 0))
    • Make the function logo on hatch:
      • set logo to mirror along normal(shape load step or iges from text(text fetch text("https://git-cdn.bitbybit.dev/latest/assets/logo/logo-faces.stp"), file type step, adjust z to y true), origin point xyz(0, 0, 0), normal vector xyz(1, 0, 0))
      • set box to await tight bbox(logo)
      • set scaled to scale(shape logo, factor (26 ÷ (if (get item(list get value on prop(json box, property "size"), index 0, clone false) > get item(list get value on prop(json box, property "size"), index 2, clone false)) then get item(list get value on prop(json box, property "size"), index 0, clone false) else get item(list get value on prop(json box, property "size"), index 2, clone false))))
      • set box to await tight bbox(scaled)
      • return translate(shape scaled, translation vector xyz((0 - get item(list get value on prop(json box, property "center"), index 0, clone false)), (47.9 - get item(list get value on prop(json box, property "min"), index 1, clone false)), (10 - get item(list get value on prop(json box, property "center"), index 2, clone false))))
    • Add a stack under the others:
      • set placed logo to logo on hatch()
      • draw any async no return(entity difference(shape hatch lid(), shapes [extrude(shape placed logo, direction vector xyz(0, 1.7, 0))], keep edges false), options paint)
      • draw any async no return(entity extrude(shape scale 3d(shape placed logo, scale vector xyz(0.96, 1, 0.96), center point xyz(0, 47.9, 10)), direction vector xyz(0, 1.1, 0)), options look("emblem", #f4f4f4, 0.2, 0.5, #000000, #0d0e10, 4))
    • Run it with Run The Code.
    Build a drone in the Blockly editor, canopy and electronics: A hatch closes the top, with the bitbybit logo in it.

  4. The GPS stands on a mast behind the canopy, its puck's edges rounded, and two antennas angle down and back from the bottom plate.

    • Make the function gps:
      • return union(shapes [cylinder(radius 2.5, height 34, center point xyz(0, 16, -70), direction vector xyz(0, 1, 0)), fillet edges(shape cylinder(radius 11, height 6, center point xyz(0, 50, -70), direction vector xyz(0, 1, 0)), radius 1.5)], keep edges false)
    • Make the function antennas:
      • set antenna to rotate(shape union(shapes [cylinder(radius 1.5, height 42, center point xyz(0, 0, 0), direction vector xyz(0, 1, 0)), sphere(radius 1.5, center point xyz(0, 42, 0))], keep edges false), axis vector xyz(1, 0, 0), angle 225)
      • return make compound([translate(shape antenna, translation vector xyz(-14, 0, -67)), translate(shape antenna, translation vector xyz(14, 0, -67))])
    • Add a stack under the others:
      • draw any async no return(entity gps(), options look("polymer", #2a2d31, 0.05, 0.4, #000000, #f2f2f2, 6))
      • set rubber to look("rubber", #111214, 0, 0.92, #000000, #f2f2f2, 4)
      • draw any async no return(entity antennas(), options rubber)
    • Run it with Run The Code.

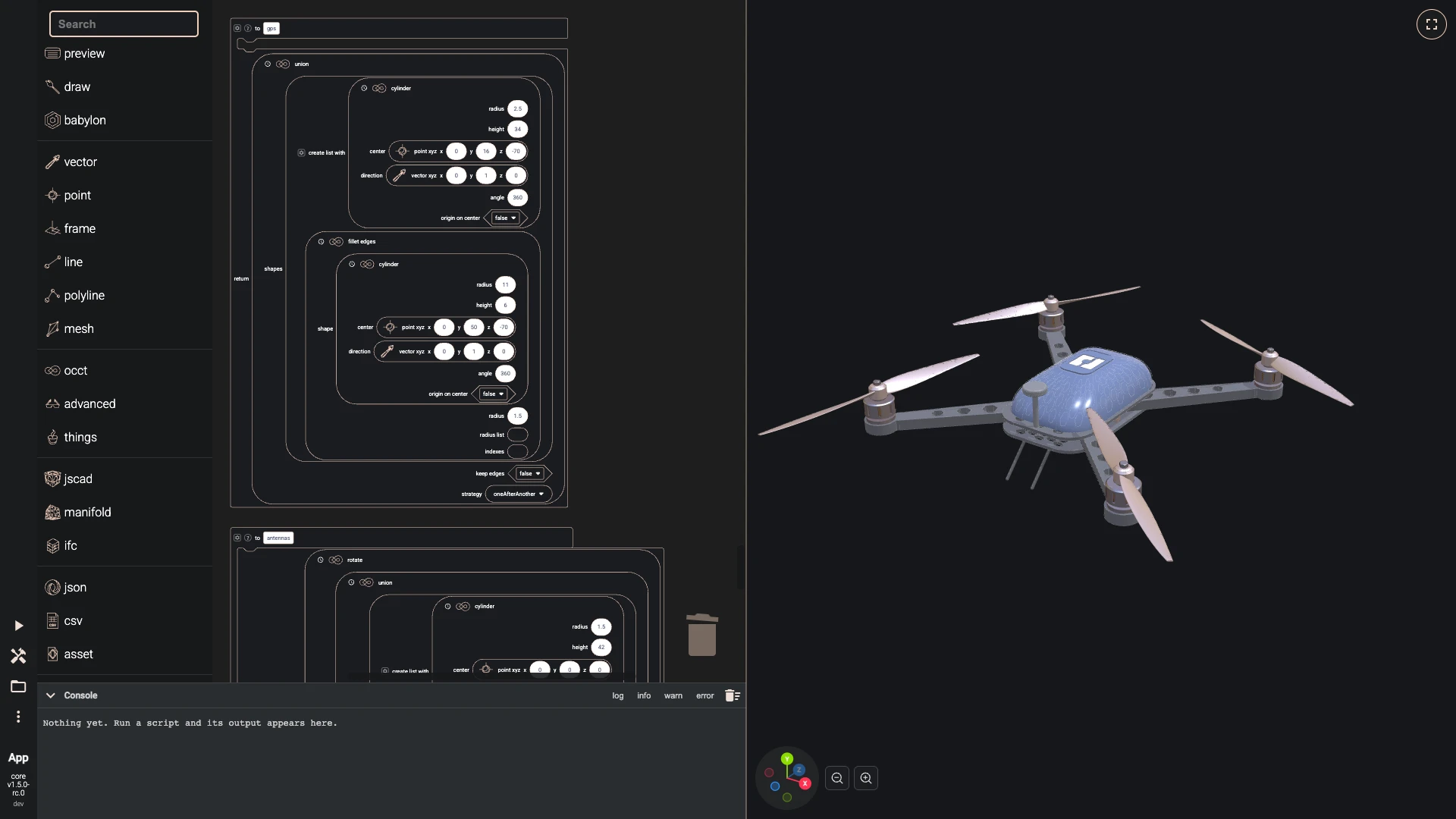

    Build a drone in the Blockly editor, canopy and electronics: The GPS stands on a mast behind the canopy, its puck's edges rounded, and two antennas angle down and back from the bottom plate.

Next: landing gear.
