Build a drone: arms around the frame

One arm becomes as many as arms says: each draw gets a call of around in place of its part. Two async functions then make the drone fly straight and show which way it faces.

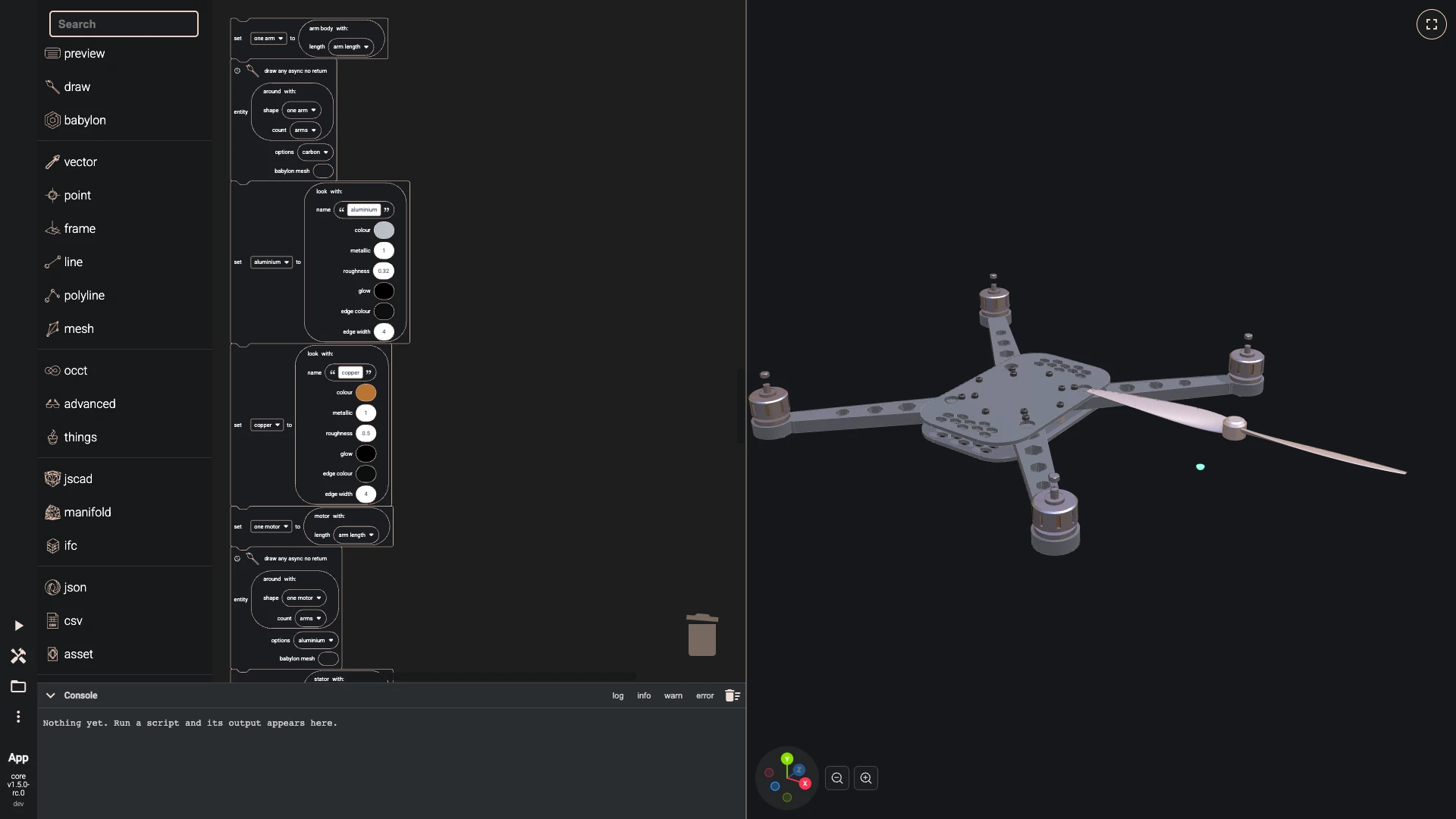

1. around makes the one arm into as many as arms says: in each draw, replace the part with a call of around, and the arm, the motor, the stator and the bolts stand around the frame.

   • In draw any async no return(entity one arm, options carbon), replace one arm with around(one arm, arms).
   • In draw any async no return(entity one motor, options aluminium), replace one motor with around(one motor, arms).
   • In draw any async no return(entity one stator, options copper), replace one stator with around(one stator, arms).
   • In draw any async no return(entity arm fixings, options steel), replace arm fixings with around(arm fixings, arms).
   • Run it with Run The Code.

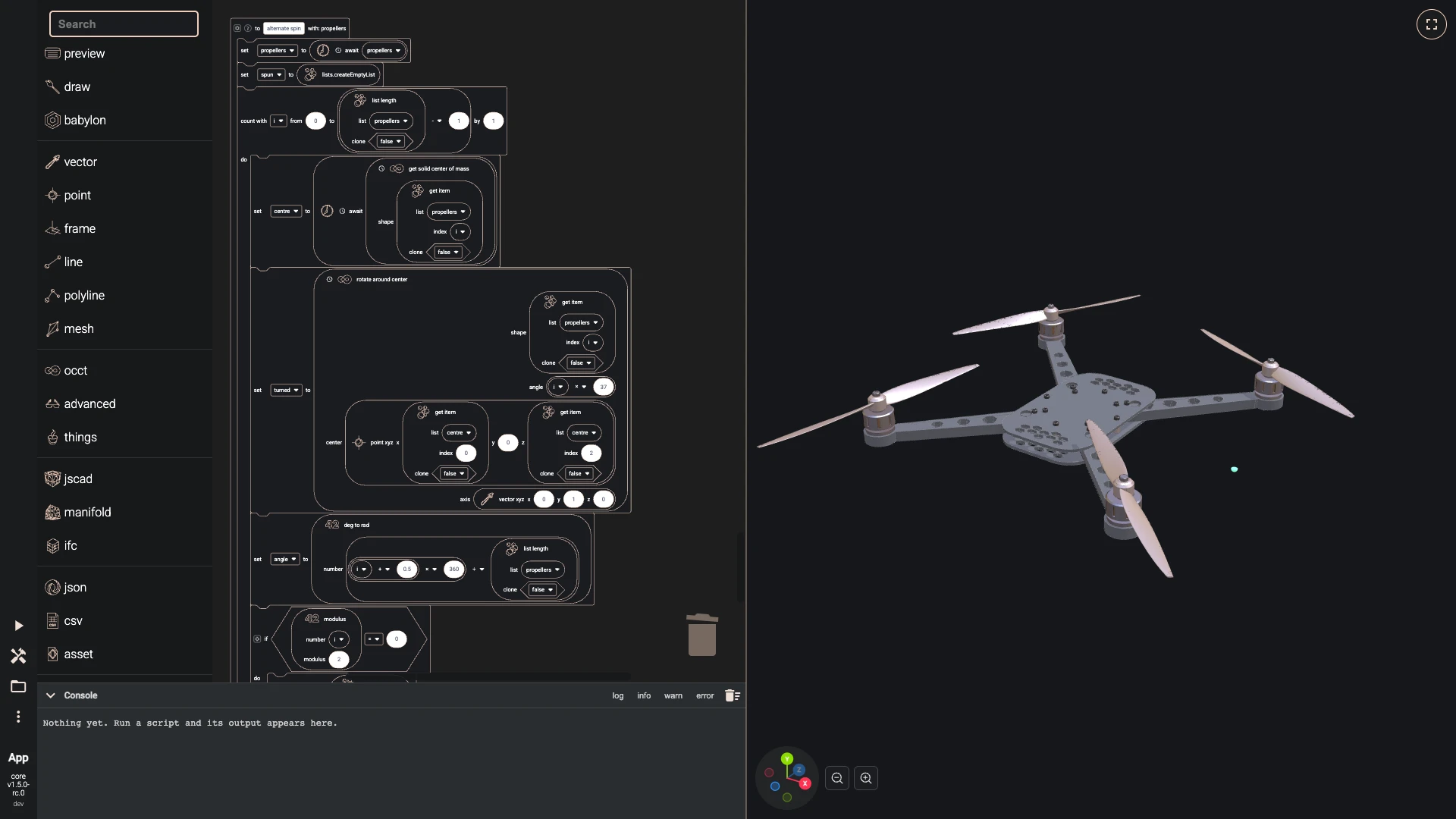

2. Neighbouring propellers turn opposite ways, so the drone does not spin. alternate spin is an async function: it awaits the propellers it is given, then a count loop awaits each one's centre, turns it a little around it, and mirrors every second one across its own arm. A function with an await block in it runs as async; a set block that keeps its result waits for it, so the blocks after it can use the result.

   • Make the function alternate spin with the inputs propellers:
     • set propellers to await propellers
     • set spun to empty list
     • count with i from 0 to (list length(list propellers, clone false) - 1) by 1:
       • set centre to await get solid center of mass(get item(list propellers, index i, clone false))
       • set turned to rotate around center(shape get item(list propellers, index i, clone false), angle (i × 37), center point xyz(get item(list centre, index 0, clone false), 0, get item(list centre, index 2, clone false)), axis vector xyz(0, 1, 0))
       • set angle to deg to rad((((i + 0.5) × 360) ÷ list length(list propellers, clone false)))
       • if (modulus(number i, modulus 2) = 0):
         • set spun to add item(list spun, item turned, clone false)
       • else:
         • set spun to add item(list spun, item mirror along normal(shape turned, origin point xyz(0, 0, 0), normal vector xyz(sin(angle), 0, cos(angle))), clone false)
     • return spun
   • Snap under the block set one propeller to propeller(arm length, diameter):
     • set spun to alternate spin(around(one propeller, arms))
   • In draw any async no return(entity one propeller, options accent), replace one propeller with spun.
   • Run it with Run The Code.

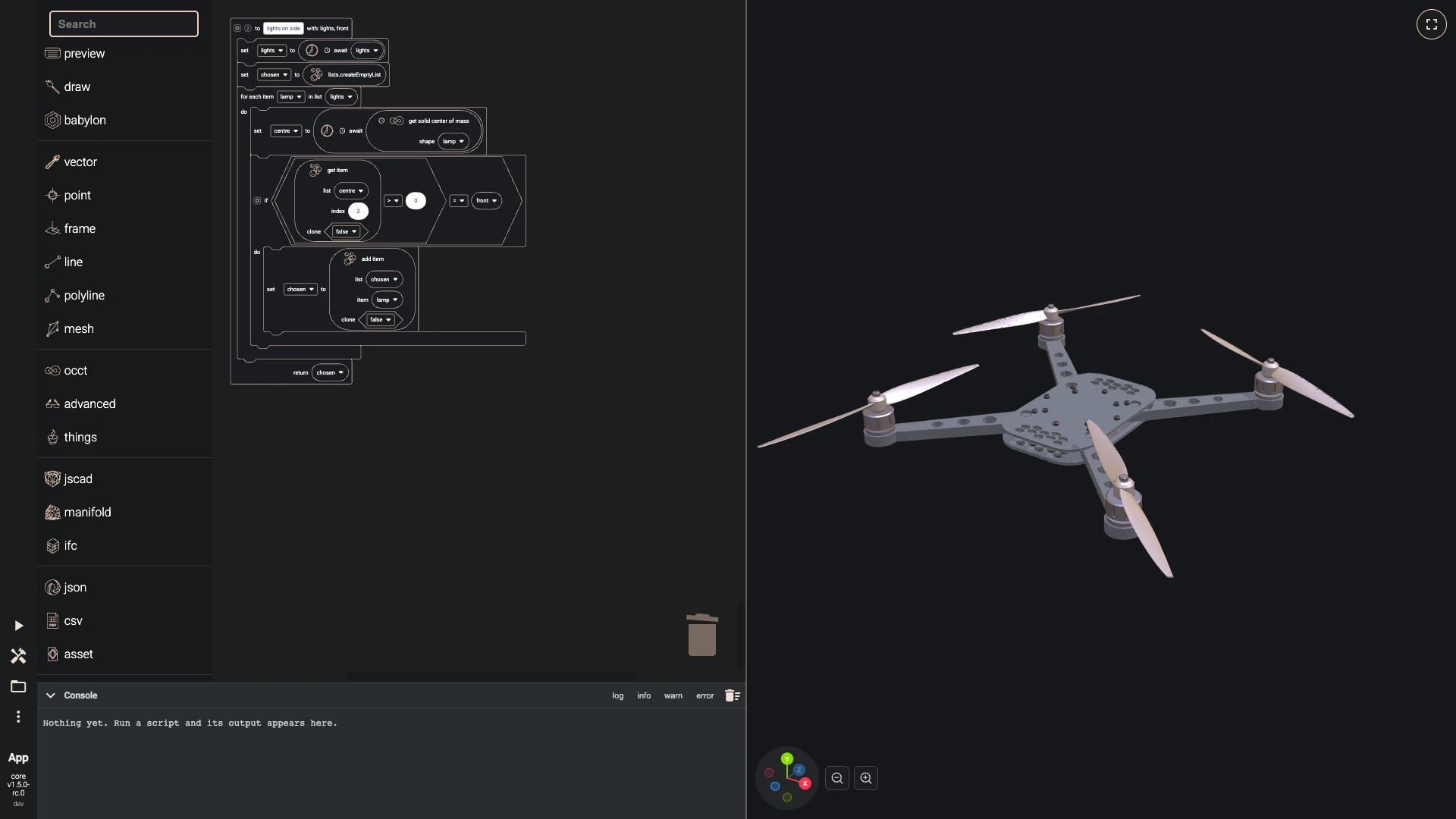

3. The lights repeat too. lights on side awaits each light's centre and keeps the ones on the side it is asked for; two set blocks keep the front ones and the back ones, drawn green and red, as on an aircraft.

   • Make the function lights on side with the inputs lights, front:
     • set lights to await lights
     • set chosen to empty list
     • for each item lamp in lights:
       • set centre to await get solid center of mass(lamp)
       • if ((get item(list centre, index 2, clone false) > 0) = front):
         • set chosen to add item(list chosen, item lamp, clone false)
     • return chosen
   • Snap under the block set one light to light(arm length):
     • set front lights to lights on side(around(one light, arms), true)
     • set back lights to lights on side(around(one light, arms), false)
   • In draw any async no return(entity one light, options green), replace one light with front lights.
   • Snap under the block draw any async no return(entity front lights, options green):
     • draw any async no return(entity back lights, options look("red", #ff2a2a, 0, 0.2, #ff2a2a, #0d0e10, 0))
   • Run it with Run The Code.


Next: canopy and electronics.
