Build a drone: one arm

An arm carries most of the drone's detail, so it gets a folder of its own, parts/arm, with a file for each part. This chapter draws one arm along the x axis; the next one repeats it.

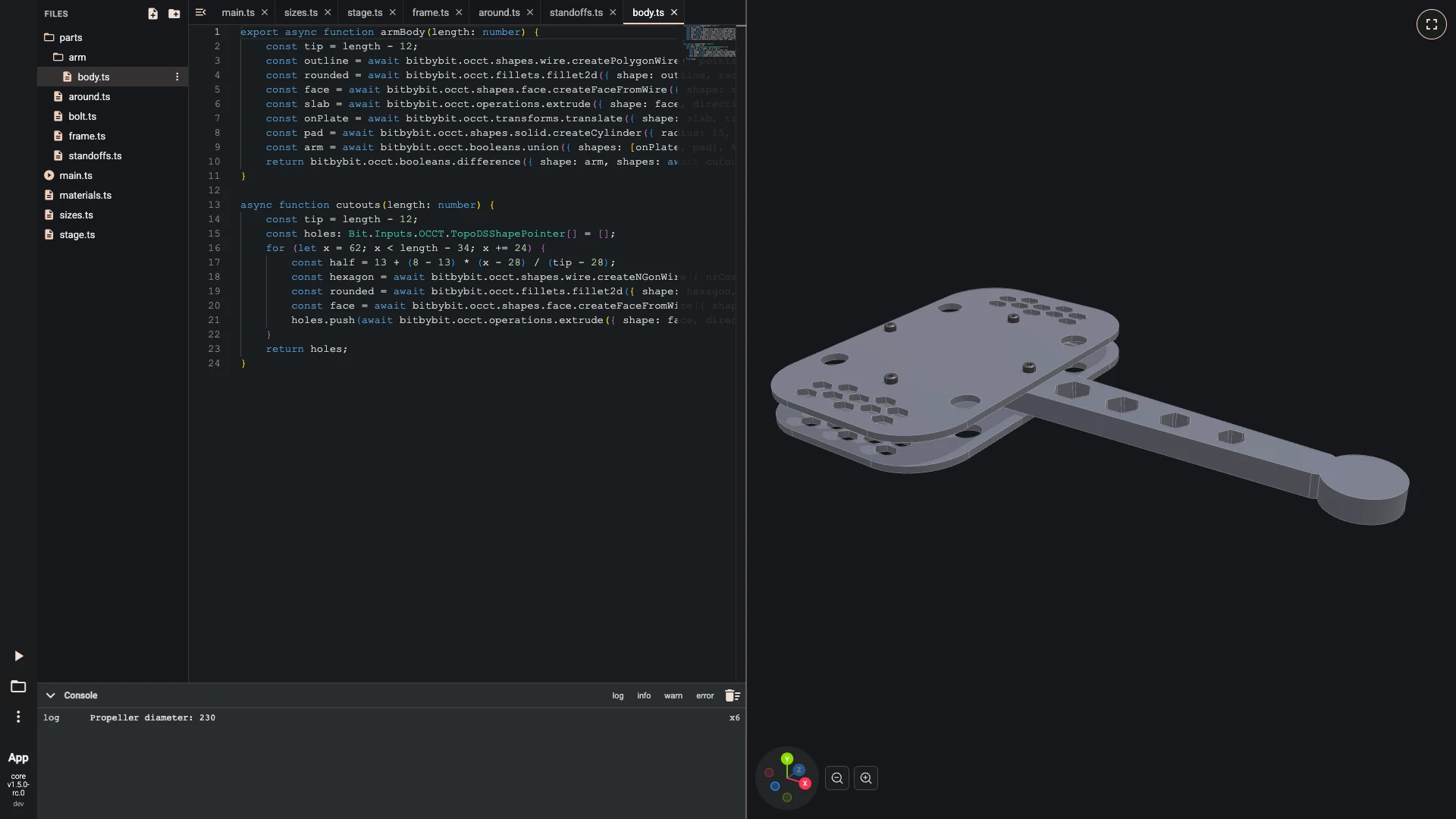

1. An arm and everything on it get a folder, parts/arm. The arm narrows from 26 millimetres at the root to 16 at the tip, is rounded and extruded 10 millimetres onto the plate, and carries a round pad for the motor at its tip. A loop makes a rounded hexagon every 24 millimetres, sized to the arm's width where it sits, and the difference cuts them all away.

   • Make parts/arm/body.ts:

   export async function armBody(length: number) {
       const tip = length - 12;
       const outline = await bitbybit.occt.shapes.wire.createPolygonWire({ points: [[28, 0, -13], [tip, 0, -8], [tip, 0, 8], [28, 0, 13]] });
       const rounded = await bitbybit.occt.fillets.fillet2d({ shape: outline, radius: 4 });
       const face = await bitbybit.occt.shapes.face.createFaceFromWire({ shape: rounded, planar: true });
       const slab = await bitbybit.occt.operations.extrude({ shape: face, direction: [0, 10, 0] });
       const onPlate = await bitbybit.occt.transforms.translate({ shape: slab, translation: [0, 3, 0] });
       const pad = await bitbybit.occt.shapes.solid.createCylinder({ radius: 15, height: 10, center: [length, 3, 0], direction: [0, 1, 0] });
       const arm = await bitbybit.occt.booleans.union({ shapes: [onPlate, pad], keepEdges: false });
       return bitbybit.occt.booleans.difference({ shape: arm, shapes: await cutouts(length), keepEdges: false });
   }

   async function cutouts(length: number) {
       const tip = length - 12;
       const holes: Bit.Inputs.OCCT.TopoDSShapePointer[] = [];
       for (let x = 62; x < length - 34; x += 24) {
           const half = 13 + (8 - 13) * (x - 28) / (tip - 28);
           const hexagon = await bitbybit.occt.shapes.wire.createNGonWire({ nrCorners: 6, radius: Math.max(half - 3.5, 2.5), center: [x, 3, 0], direction: [0, 1, 0] });
           const rounded = await bitbybit.occt.fillets.fillet2d({ shape: hexagon, radius: 1.2 });
           const face = await bitbybit.occt.shapes.face.createFaceFromWire({ shape: rounded, planar: true });
           holes.push(await bitbybit.occt.operations.extrude({ shape: face, direction: [0, 10, 0] }));
       }
       return holes;
   }

   • Import at the top of main.ts:

   import { armBody } from "./parts/arm/body";

   • Add at the end of main.ts:

   const arm = await armBody(sizes.armLength);
   await draw(looks.carbon, arm);

   • Run it with Run The Code.

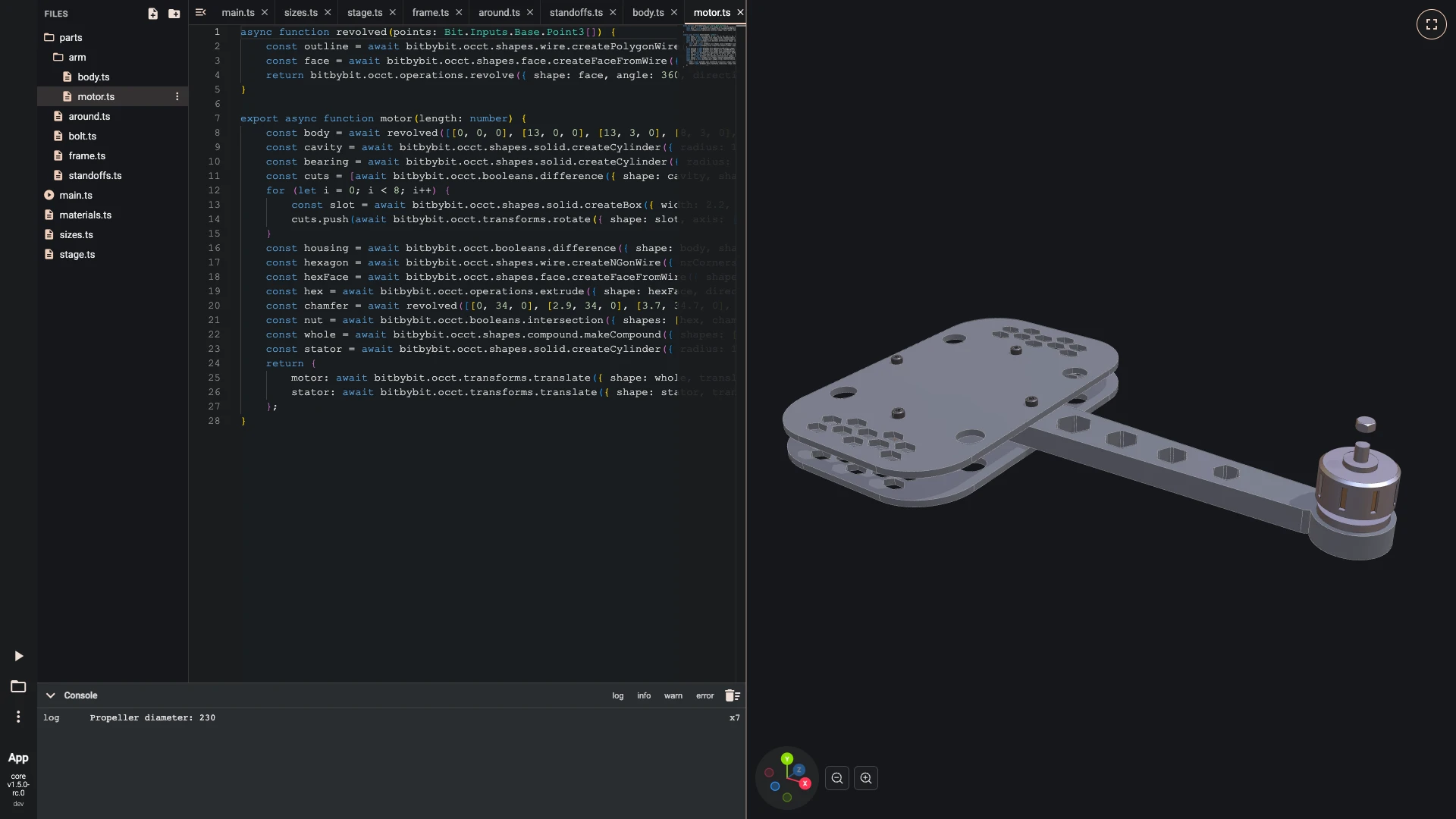

2. The motor's body is a profile revolved around its shaft, with a cavity and eight cooling slots cut away and the propeller nut on top. Inside it a copper stator shows through the slots. Both move to the arm's tip.

   • Make parts/arm/motor.ts:

   async function revolved(points: Bit.Inputs.Base.Point3[]) {
       const outline = await bitbybit.occt.shapes.wire.createPolygonWire({ points });
       const face = await bitbybit.occt.shapes.face.createFaceFromWire({ shape: outline, planar: true });
       return bitbybit.occt.operations.revolve({ shape: face, angle: 360, direction: [0, 1, 0], copy: false });
   }

   export async function motor(length: number) {
       const body = await revolved([[0, 0, 0], [13, 0, 0], [13, 3, 0], [8, 3, 0], [8, 6, 0], [14, 6, 0], [14, 19, 0], [12.8, 20, 0], [6, 20, 0], [6, 22, 0], [2.5, 22, 0], [2.5, 28, 0], [0, 28, 0]]);
       const cavity = await bitbybit.occt.shapes.solid.createCylinder({ radius: 12.4, height: 12, center: [0, 6, 0], direction: [0, 1, 0] });
       const bearing = await bitbybit.occt.shapes.solid.createCylinder({ radius: 4, height: 14, center: [0, 5, 0], direction: [0, 1, 0] });
       const cuts = [await bitbybit.occt.booleans.difference({ shape: cavity, shapes: [bearing], keepEdges: false })];
       for (let i = 0; i < 8; i++) {
           const slot = await bitbybit.occt.shapes.solid.createBox({ width: 2.2, length: 8, height: 9, center: [0, 13, 12] });
           cuts.push(await bitbybit.occt.transforms.rotate({ shape: slot, axis: [0, 1, 0], angle: i * 45 }));
       }
       const housing = await bitbybit.occt.booleans.difference({ shape: body, shapes: cuts, keepEdges: false });
       const hexagon = await bitbybit.occt.shapes.wire.createNGonWire({ nrCorners: 6, radius: 3.6, center: [0, 34, 0], direction: [0, 1, 0] });
       const hexFace = await bitbybit.occt.shapes.face.createFaceFromWire({ shape: hexagon, planar: true });
       const hex = await bitbybit.occt.operations.extrude({ shape: hexFace, direction: [0, 3.5, 0] });
       const chamfer = await revolved([[0, 34, 0], [2.9, 34, 0], [3.7, 34.7, 0], [3.7, 36.8, 0], [2.9, 37.5, 0], [0, 37.5, 0]]);
       const nut = await bitbybit.occt.booleans.intersection({ shapes: [hex, chamfer], keepEdges: false });
       const whole = await bitbybit.occt.shapes.compound.makeCompound({ shapes: [housing, nut] });
       const stator = await bitbybit.occt.shapes.solid.createCylinder({ radius: 11.8, height: 11, center: [0, 6.5, 0], direction: [0, 1, 0] });
       return {
           motor: await bitbybit.occt.transforms.translate({ shape: whole, translation: [length, 13, 0] }),
           stator: await bitbybit.occt.transforms.translate({ shape: stator, translation: [length, 13, 0] }),
       };
   }

   • Import at the top of main.ts:

   import { motor } from "./parts/arm/motor";

   • Add at the end of main.ts:

   const motorParts = await motor(sizes.armLength);
   await draw(looks.aluminium, motorParts.motor);
   await draw(looks.copper, motorParts.stator);

   • Run it with Run The Code.

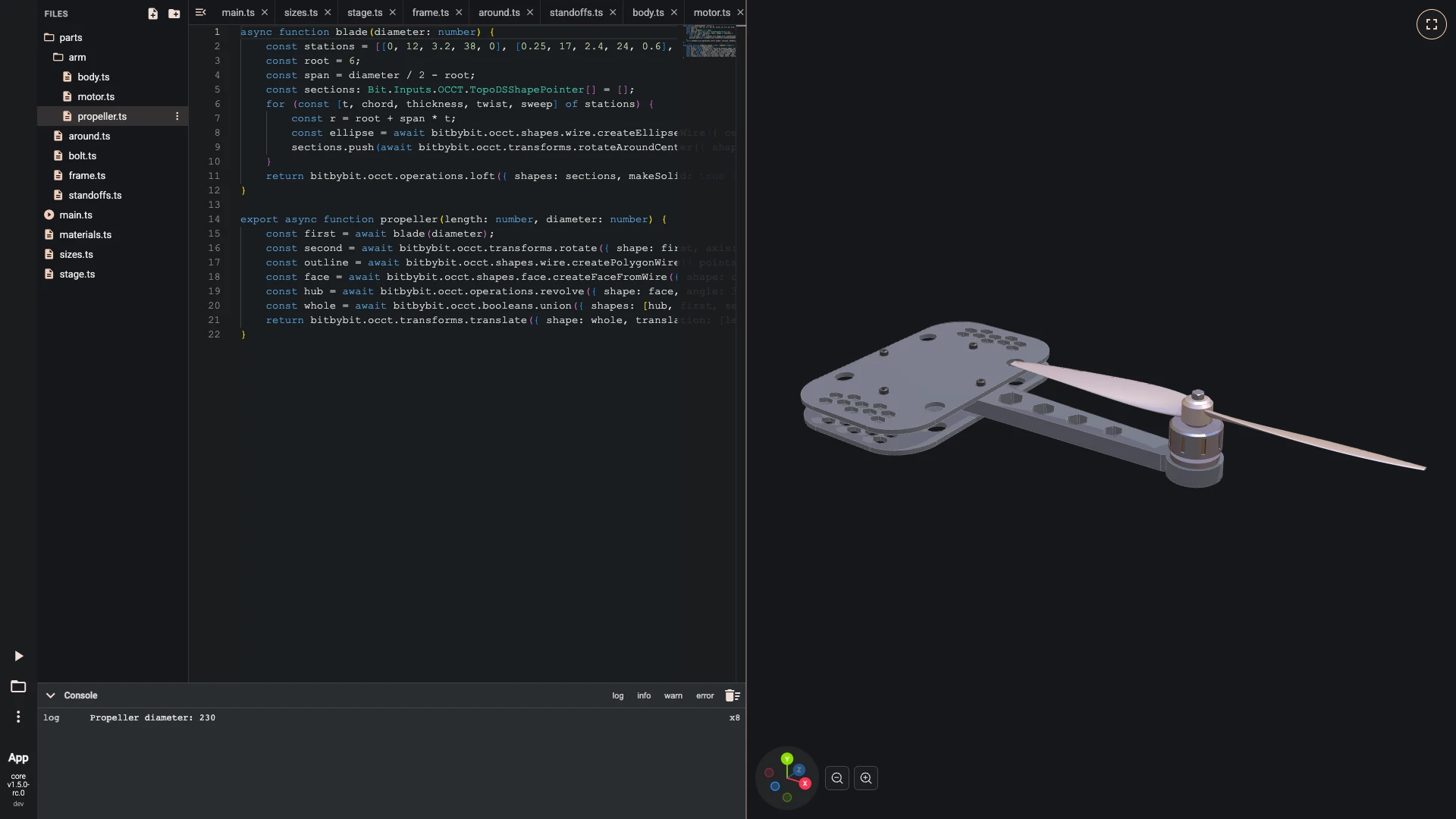

3. A blade is lofted through five twisted ellipses, from a thick root to a thin, swept tip; the stations are numbers in a list, and the loop turns each into a section. A second blade half a turn round and a revolved hub complete the propeller, which sits on the motor's shaft, at the diameter fitPropeller worked out.

   • Make parts/arm/propeller.ts:

   async function blade(diameter: number) {
       const stations = [[0, 12, 3.2, 38, 0], [0.25, 17, 2.4, 24, 0.6], [0.5, 15.5, 1.8, 16, 1.8], [0.78, 11, 1.4, 11, 3.6], [1, 4.5, 1, 8, 6]];
       const root = 6;
       const span = diameter / 2 - root;
       const sections: Bit.Inputs.OCCT.TopoDSShapePointer[] = [];
       for (const [t, chord, thickness, twist, sweep] of stations) {
           const r = root + span * t;
           const ellipse = await bitbybit.occt.shapes.wire.createEllipseWire({ center: [r, 0, sweep], direction: [1, 0, 0], radiusMinor: thickness / 2, radiusMajor: chord / 2 });
           sections.push(await bitbybit.occt.transforms.rotateAroundCenter({ shape: ellipse, angle: twist, center: [r, 0, sweep], axis: [1, 0, 0] }));
       }
       return bitbybit.occt.operations.loft({ shapes: sections, makeSolid: true });
   }

   export async function propeller(length: number, diameter: number) {
       const first = await blade(diameter);
       const second = await bitbybit.occt.transforms.rotate({ shape: first, axis: [0, 1, 0], angle: 180 });
       const outline = await bitbybit.occt.shapes.wire.createPolygonWire({ points: [[0, -5, 0], [8, -5, 0], [8, 4.5, 0], [6.5, 6.2, 0], [4.5, 7, 0], [0, 7, 0]] });
       const face = await bitbybit.occt.shapes.face.createFaceFromWire({ shape: outline, planar: true });
       const hub = await bitbybit.occt.operations.revolve({ shape: face, angle: 360, direction: [0, 1, 0], copy: false });
       const whole = await bitbybit.occt.booleans.union({ shapes: [hub, first, second], keepEdges: false });
       return bitbybit.occt.transforms.translate({ shape: whole, translation: [length, 40, 0] });
   }

   • Import at the top of main.ts:

   import { propeller } from "./parts/arm/propeller";

   • Add at the end of main.ts:

   const blades = await propeller(sizes.armLength, diameter);
   await draw(looks.accent, blades);

   • Run it with Run The Code.

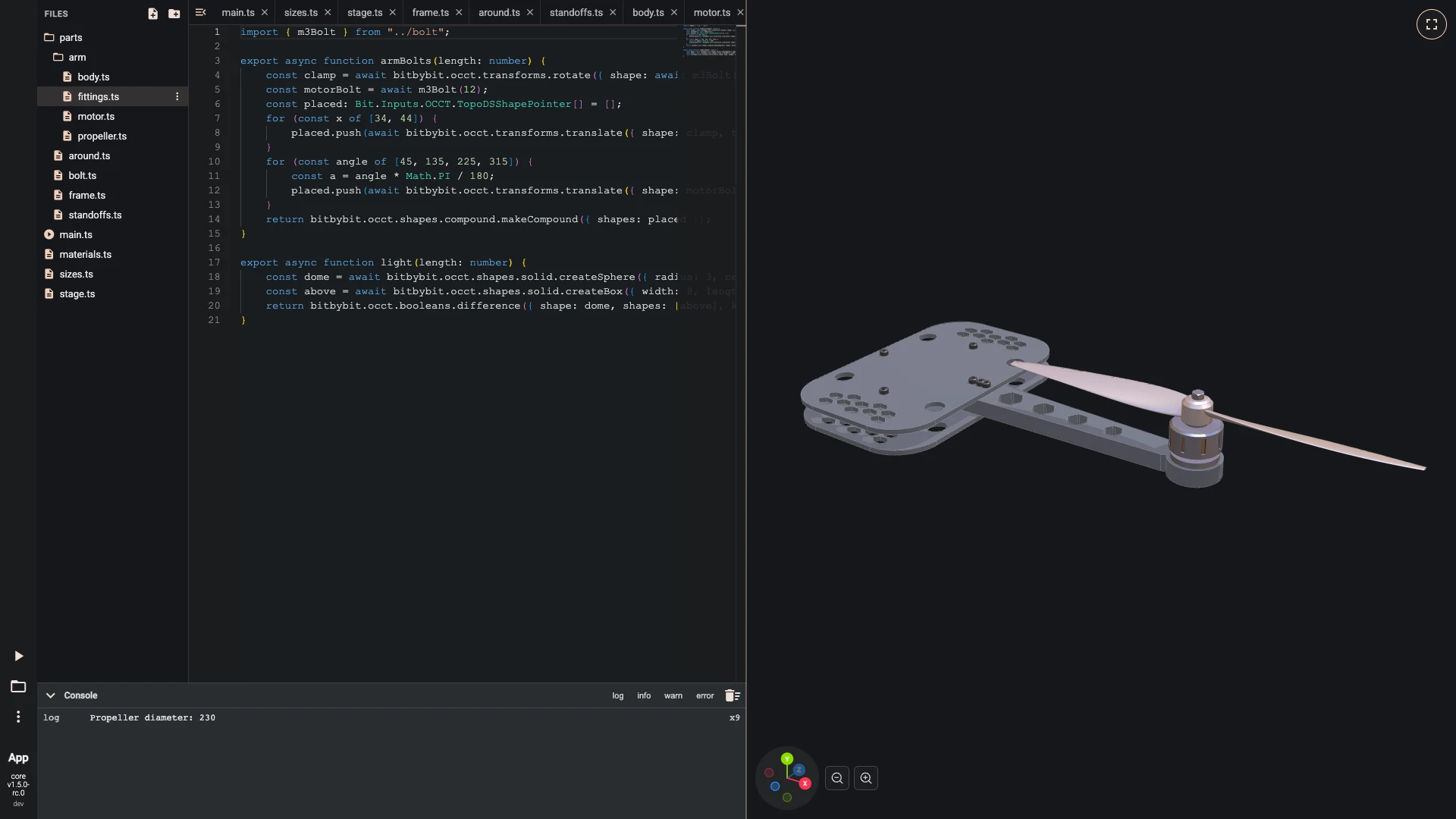

4. Six bolts hold the arm, two clamping it between the plates and four fixing the motor from below, all the M3 bolt from parts/bolt.ts; a file one folder down imports it with ../bolt. An LED dome hangs under the arm.

   • Make parts/arm/fittings.ts:

   import { m3Bolt } from "../bolt";

   export async function armBolts(length: number) {
       const clamp = await bitbybit.occt.transforms.rotate({ shape: await m3Bolt(16), axis: [1, 0, 0], angle: 180 });
       const motorBolt = await m3Bolt(12);
       const placed: Bit.Inputs.OCCT.TopoDSShapePointer[] = [];
       for (const x of [34, 44]) {
           placed.push(await bitbybit.occt.transforms.translate({ shape: clamp, translation: [x, 16, 0] }));
       }
       for (const angle of [45, 135, 225, 315]) {
           const a = angle * Math.PI / 180;
           placed.push(await bitbybit.occt.transforms.translate({ shape: motorBolt, translation: [length + 8 * Math.cos(a), 3, 8 * Math.sin(a)] }));
       }
       return bitbybit.occt.shapes.compound.makeCompound({ shapes: placed });
   }

   export async function light(length: number) {
       const dome = await bitbybit.occt.shapes.solid.createSphere({ radius: 3, center: [length - 24, 3, 0] });
       const above = await bitbybit.occt.shapes.solid.createBox({ width: 8, length: 8, height: 4, center: [length - 24, 5, 0] });
       return bitbybit.occt.booleans.difference({ shape: dome, shapes: [above], keepEdges: false });
   }

   • Import at the top of main.ts:

   import { armBolts, light } from "./parts/arm/fittings";

   • Add at the end of main.ts:

   const bolts = await armBolts(sizes.armLength);
   await draw(looks.steel, bolts);
   const lamp = await light(sizes.armLength);
   await draw(looks.green, lamp);

   • Run it with Run The Code.


Next: arms around the frame.
