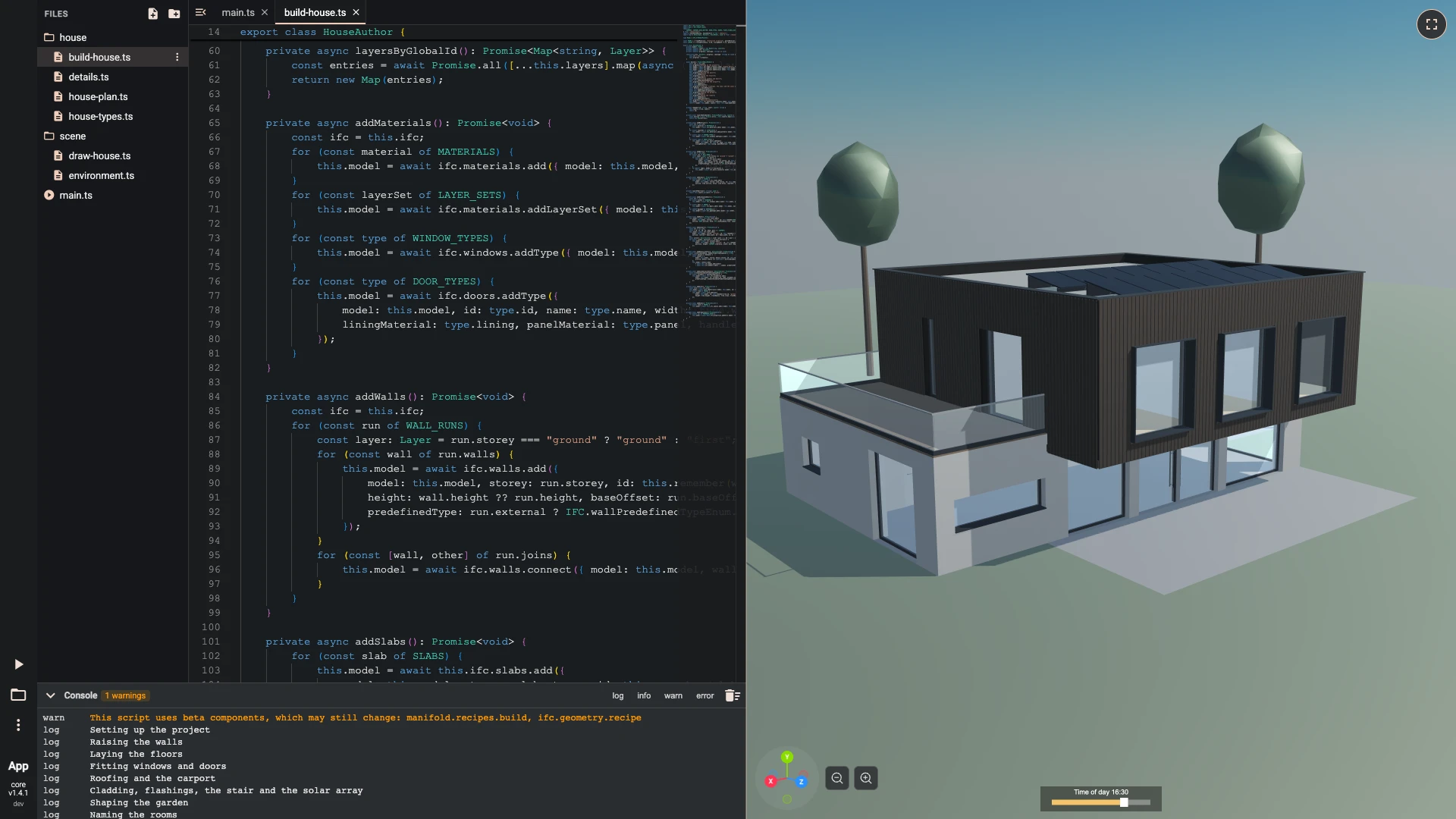

The family house in the TypeScript editor: the project's files on the left, house/build-house.ts open with the IFC calls that write the walls, floors and openings, and the house drawn under its sky on the right

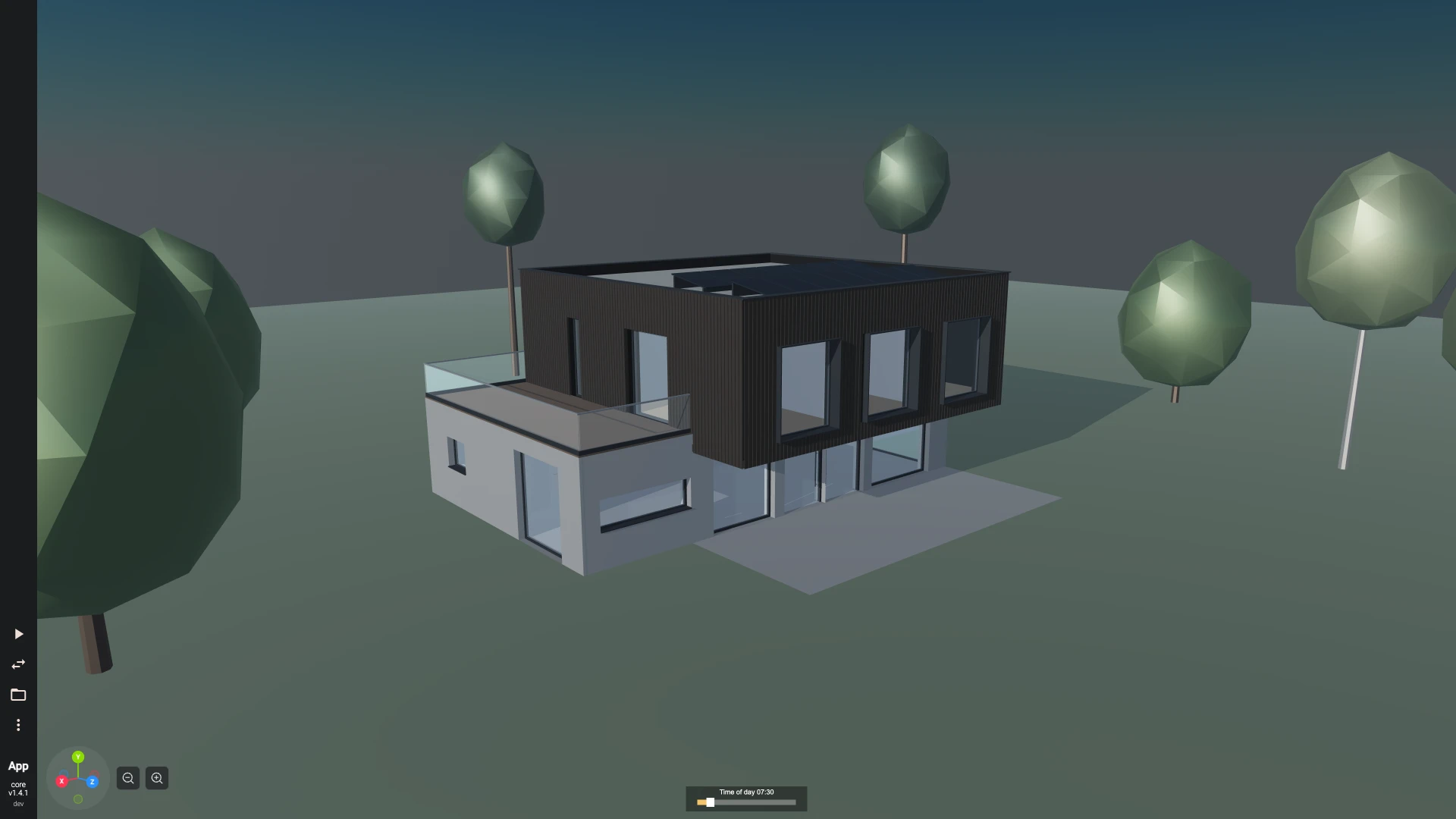

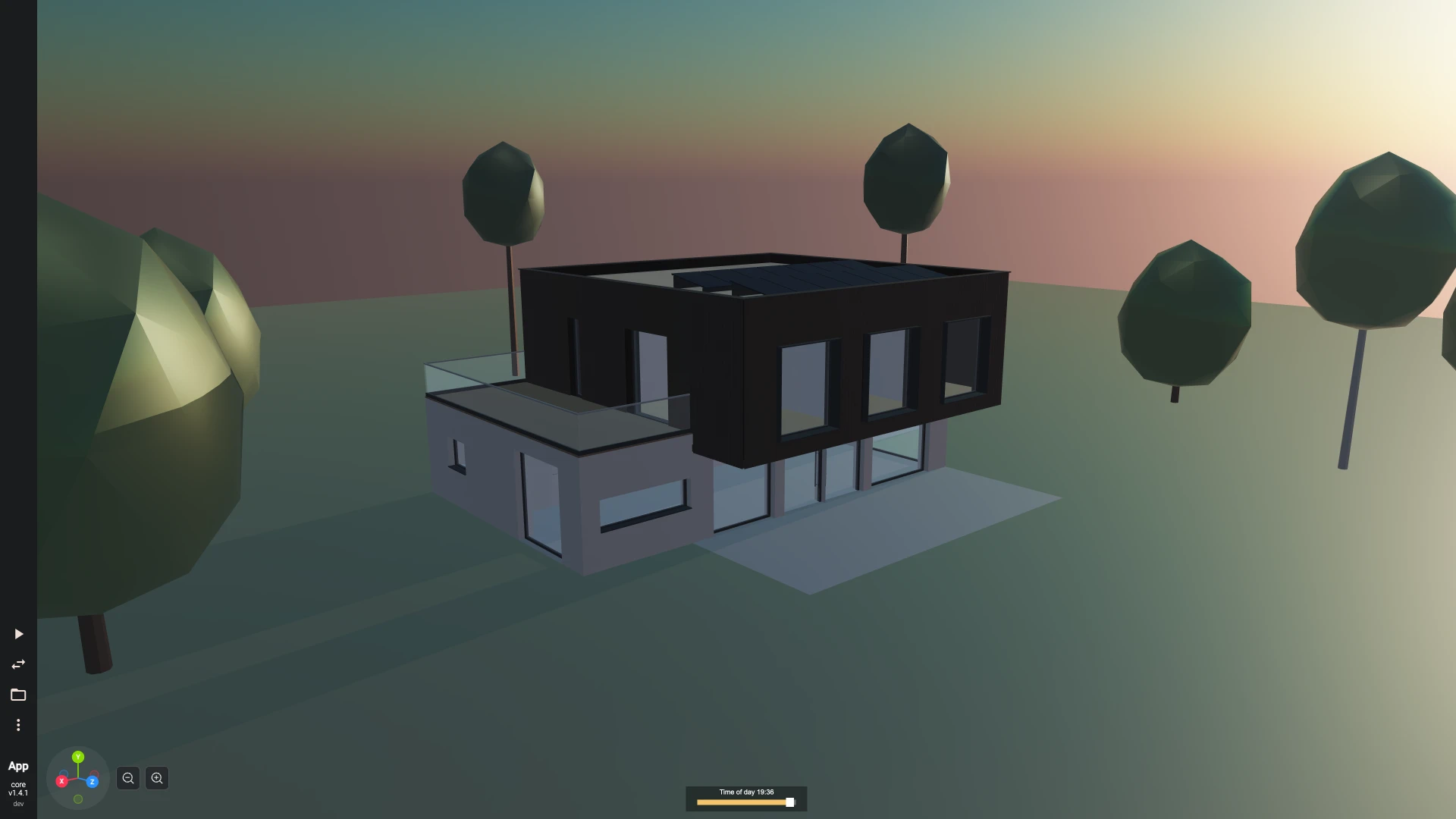

The family house written as IFC in a TypeScript project, drawn in its materials' colours on an afternoon, its shadows on the gardenThe family house at dusk: a warm low sun and a pink sky, the time-of-day slider at the foot of the viewThe family house in the morning, the low sun throwing long shadows of the house and its trees across the garden
Bitbybit Platform

A family house written as IFC in TypeScript

typescript logoTypescript
main.ts
import { HouseAuthor } from "./house/build-house";
import { drawHouse } from "./scene/draw-house";
import { setUpEnvironment } from "./scene/environment";

const house = await new HouseAuthor(bitbybit.ifc, (message) => console.log(message)).build();
const drawn = await drawHouse(house);
setUpEnvironment(drawn);

bitbybit.babylon.scene.adjustActiveArcRotateCamera({ position: [27, 10, 21], lookAt: [6, 2.5, -3], maxZ: 1000 });
house/house-types.ts
import Base = Bit.Inputs.Base;
import IFC = Bit.Inputs.IFC;

export type Point = Base.Point2;

export type StoreyKey = "ground" | "first";

export type Layer = "ground" | "first" | "roof" | "garden";

export interface MaterialSpec {
    name: string;
    category: string;
    color?: string;
    transparency?: number;
}

export interface LayerSetSpec {
    name: string;
    layers: { material: string; thickness: number }[];
}

export interface WallSpec {
    id: string;
    name: string;
    start: Point;
    end: Point;
    height?: number;
}

export interface WallRun {
    storey: StoreyKey;
    layerSet: string;
    height: number;
    baseOffset: number;
    alignment: IFC.wallAlignmentEnum;
    walls: WallSpec[];
    joins: [string, string][];
    external: boolean;
}

export interface WindowTypeSpec {
    id: string;
    name: string;
    width: number;
    height: number;
}

export interface DoorTypeSpec {
    id: string;
    name: string;
    width: number;
    height: number;
    lining: string;
    panel: string;
    operation: IFC.doorOperationEnum;
    handle: IFC.doorHandleEnum;
    handleMaterial: string;
}

export interface FillingSpec {
    id: string;
    name: string;
    wall: string;
    type: string;
    offset: number;
    sill: number;
}

export interface PassageSpec {
    id: string;
    name: string;
    wall: string;
    offset: number;
    width: number;
    height: number;
}

export interface SlabSpec {
    id: string;
    name: string;
    storey: StoreyKey;
    outline: Point[];
    holes?: Point[][];
    layerSet: string;
    topOffset: number;
    kind: IFC.slabPredefinedTypeEnum;
    layer: Layer;
}

export interface TreeSpec {
    id: string;
    species: string;
    position: Point;
    height: number;
    crown: number;
    trunk: number;
    foliage: string;
    bark: string;
}

export interface DetailSpec {
    id: string;
    name: string;
    storey: StoreyKey;
    start: Base.Point3;
    end: Base.Point3;
    material: string;
    layer: Layer;
    width?: number;
    depth?: number;
    radius?: number;
    rotation?: number;
    kind?: IFC.memberPredefinedTypeEnum;
    beam?: boolean;
    assembly?: string;
}

export interface AssemblySpec {
    id: string;
    name: string;
    objectType: string;
}

export interface FacadeLine {
    wall: string;
    along: "x" | "y";
    line: number;
    outward: 1 | -1;
    start: number;
    direction: 1 | -1;
}

export interface FacadeSide extends FacadeLine {
    from: number;
    to: number;
}

export interface WallSide extends FacadeLine {
    thickness: number;
    baseOffset: number;
}

export interface FacadeOpening {
    id: string;
    from: number;
    to: number;
    bottom: number;
    top: number;
}

export interface PropertySetSpec {
    name: string;
    elements: string[];
    properties: IFC.PropertyDto[];
}

export type RailEnd = "flush" | "butt" | "lap";

export interface RailRun {
    id: string;
    along: "x" | "y";
    at: number;
    from: number;
    to: number;
    fromEnd: RailEnd;
    toEnd: RailEnd;
}

export interface RailSpec {
    id: string;
    name: string;
    base: number;
    external: boolean;
    runs: RailRun[];
}

export interface RoomSpec {
    id: string;
    number: string;
    name: string;
    storey: StoreyKey;
    outline: Point[];
    height: number;
}

export interface HouseModel {
    model: IFC.IfcModelPointer;
    layers: Map<string, Layer>;
    rooms: RoomSpec[];
}

export type HouseIfc = typeof bitbybit.ifc;
house/house-plan.ts
import IFC = Bit.Inputs.IFC;
import type { DoorTypeSpec, FillingSpec, LayerSetSpec, MaterialSpec, PassageSpec, Point, PropertySetSpec, RailRun, RailSpec, RoomSpec, SlabSpec, TreeSpec, WallRun, WindowTypeSpec } from "./house-types";

const { wallAlignmentEnum, doorOperationEnum, doorHandleEnum, slabPredefinedTypeEnum } = IFC;

export const FIRST_FLOOR_ELEVATION = 3.2;
export const SLAB_DEPTH = 0.3;
export const FIRST_FLOOR_WALL_TOP = 3.0;
export const FACADE_DEPTH = 0.48;
export const TIMBER_WALL = 0.415;
export const CAVITY = 0.04;
export const BOARD = { width: 0.12, gap: 0.02, thickness: 0.025 };
export const ROOF_DEPTH = 0.56;
export const PARAPET = { thickness: 0.2, height: 0.91 };
export const PARAPET_TOP = FIRST_FLOOR_WALL_TOP + PARAPET.height;
export const COPING = { thickness: 0.03, drip: 0.03 };
export const DECK_TOP = 0.04;
const GLASS_DOOR_WIDTH = 0.9;
export const SOFFIT_DEPTH = 0.2;
export const CANTILEVER_DRIP = -SLAB_DEPTH - SOFFIT_DEPTH - 0.02;

export function rect(x0: number, y0: number, x1: number, y1: number): Point[] {
    return [[x0, y0], [x1, y0], [x1, y1], [x0, y1]];
}

export const GROUND_INTERIOR = { x0: 0, y0: 0, x1: 14.2, y1: 8.4 };
export const FIRST_INTERIOR = { x0: 0, y0: -2.2, x1: 10.6, y1: 8.4 };
export const FIRST_OUTLINE = rect(FIRST_INTERIOR.x0, FIRST_INTERIOR.y0, FIRST_INTERIOR.x1, FIRST_INTERIOR.y1);
export const FIRST_FLOOR_EAST_FACE = FIRST_INTERIOR.x1 + TIMBER_WALL;
const VOID = { x0: 5.48, y0: 5.06, x1: 9.45, y1: 6.17 };
export const STAIR_VOID = rect(VOID.x0, VOID.y0, VOID.x1, VOID.y1);
export const PARAPET_INSET = TIMBER_WALL - PARAPET.thickness;
const UNDER_SLAB = FIRST_FLOOR_ELEVATION - SLAB_DEPTH;
const { x1: GX, y1: GY } = GROUND_INTERIOR;

export const MATERIALS: MaterialSpec[] = [
    { name: "Silicate render", category: "plaster", color: "#f1efea" },
    { name: "EPS insulation", category: "insulation" },
    { name: "Aerated concrete", category: "block" },
    { name: "Gypsum plaster", category: "plaster", color: "#ece9e3" },
    { name: "Facade membrane", category: "membrane", color: "#161514" },
    { name: "Wood fibre board", category: "insulation" },
    { name: "Timber frame with mineral wool", category: "wood" },
    { name: "Mineral wool", category: "insulation" },
    { name: "OSB", category: "wood" },
    { name: "Service void insulation", category: "insulation" },
    { name: "Gypsum board", category: "plaster", color: "#ece9e3" },
    { name: "Timber studs", category: "wood" },
    { name: "Charred larch", category: "wood", color: "#3b342e" },
    { name: "Polished concrete", category: "concrete", color: "#c9c5bc" },
    { name: "Reinforced concrete", category: "concrete", color: "#a9a59d" },
    { name: "XPS insulation", category: "insulation" },
    { name: "Oak", category: "wood", color: "#b2865a" },
    { name: "Screed", category: "concrete" },
    { name: "Impact insulation", category: "insulation" },
    { name: "Pale gravel", category: "stone", color: "#d3cfc6" },
    { name: "Roofing membrane", category: "membrane" },
    { name: "PIR insulation", category: "insulation" },
    { name: "Vapour control layer", category: "membrane" },
    { name: "Cross-laminated timber", category: "wood" },
    { name: "Thermo ash decking", category: "wood", color: "#8b6b52" },
    { name: "Limestone paving", category: "stone", color: "#dcd7cc" },
    { name: "Concrete pavers", category: "concrete", color: "#bdb8ae" },
    { name: "Fibre cement", category: "cement", color: "#e7e5e0" },
    { name: "Anthracite aluminium", category: "aluminium", color: "#2b2f33" },
    { name: "Clear glass", category: "glass", color: "#b8d0d8", transparency: 0.72 },
    { name: "White lacquer", category: "wood", color: "#f4f2ed" },
    { name: "Smoked oak", category: "wood", color: "#5c4433" },
    { name: "Brushed stainless steel", category: "steel", color: "#b4b8bc" },
    { name: "Blackened steel", category: "steel", color: "#2f3236" },
    { name: "Solar module", category: "glass", color: "#1c2530" },
    { name: "Sedum", category: "vegetation", color: "#8d9a5c" },
    { name: "Plywood", category: "wood" },
    { name: "Glulam spruce", category: "wood", color: "#c9a272" },
    { name: "Lawn", category: "soil", color: "#9fb184" },
    { name: "Birch foliage", category: "vegetation", color: "#9db277" },
    { name: "Maple foliage", category: "vegetation", color: "#6f8f58" },
    { name: "Pine needles", category: "vegetation", color: "#50684b" },
    { name: "Birch bark", category: "wood", color: "#ddd8cc" },
    { name: "Bark", category: "wood", color: "#5b4a3c" },
];

export const LAYER_SETS: LayerSetSpec[] = [
    { name: "Rendered masonry wall", layers: [{ material: "Silicate render", thickness: 0.015 }, { material: "EPS insulation", thickness: 0.2 }, { material: "Aerated concrete", thickness: 0.25 }, { material: "Gypsum plaster", thickness: 0.015 }] },
    {
        name: "Timber frame wall",
        layers: [
            { material: "Facade membrane", thickness: 0.002 }, { material: "Wood fibre board", thickness: 0.08 }, { material: "Timber frame with mineral wool", thickness: 0.24 },
            { material: "OSB", thickness: 0.018 }, { material: "Service void insulation", thickness: 0.05 }, { material: "Gypsum board", thickness: 0.025 },
        ],
    },
    { name: "Parapet", layers: [{ material: "Facade membrane", thickness: 0.002 }, { material: "Timber frame with mineral wool", thickness: 0.198 }] },
    { name: "Partition", layers: [{ material: "Gypsum board", thickness: 0.0125 }, { material: "Timber studs", thickness: 0.095 }, { material: "Gypsum board", thickness: 0.0125 }] },
    { name: "Glass partition", layers: [{ material: "Clear glass", thickness: 0.03 }] },
    { name: "Glass balustrade", layers: [{ material: "Clear glass", thickness: 0.02 }] },
    { name: "Insulated ground slab", layers: [{ material: "Polished concrete", thickness: 0.06 }, { material: "Reinforced concrete", thickness: 0.2 }, { material: "XPS insulation", thickness: 0.25 }] },
    { name: "Upper floor slab", layers: [{ material: "Oak", thickness: 0.02 }, { material: "Screed", thickness: 0.06 }, { material: "Impact insulation", thickness: 0.03 }, { material: "Reinforced concrete", thickness: 0.19 }] },
    { name: "Terrace roof slab", layers: [{ material: "Roofing membrane", thickness: 0.005 }, { material: "PIR insulation", thickness: 0.18 }, { material: "Reinforced concrete", thickness: 0.115 }] },
    { name: "Warm flat roof", layers: [{ material: "Pale gravel", thickness: 0.05 }, { material: "Roofing membrane", thickness: 0.005 }, { material: "PIR insulation", thickness: 0.3 }, { material: "Vapour control layer", thickness: 0.005 }, { material: "Cross-laminated timber", thickness: 0.2 }] },
    { name: "Insulated soffit", layers: [{ material: "Mineral wool", thickness: 0.18 }, { material: "Charred larch", thickness: 0.02 }] },
    { name: "Carport roof", layers: [{ material: "Sedum", thickness: 0.06 }, { material: "Roofing membrane", thickness: 0.005 }, { material: "Plywood", thickness: 0.025 }] },
    { name: "Decking", layers: [{ material: "Thermo ash decking", thickness: 0.04 }] },
    { name: "Garden paving", layers: [{ material: "Limestone paving", thickness: 0.05 }, { material: "Reinforced concrete", thickness: 0.1 }] },
    { name: "Driveway", layers: [{ material: "Concrete pavers", thickness: 0.08 }, { material: "Reinforced concrete", thickness: 0.1 }] },
];

export const WINDOW_TYPES: WindowTypeSpec[] = [
    { id: "w-glazing-3000", name: "Fixed glazing 3000 x 2700", width: 3.0, height: 2.7 },
    { id: "w-glazing-2400", name: "Fixed glazing 2400 x 2700", width: 2.4, height: 2.7 },
    { id: "w-ribbon-3000", name: "Ribbon window 3000 x 900", width: 3.0, height: 0.9 },
    { id: "w-1600", name: "Casement 1600 x 1500", width: 1.6, height: 1.5 },
    { id: "w-1500", name: "Casement 1500 x 1000", width: 1.5, height: 1.0 },
    { id: "w-1200", name: "Casement 1200 x 1000", width: 1.2, height: 1.0 },
    { id: "w-800", name: "Hopper 800 x 600", width: 0.8, height: 0.6 },
    { id: "w-slot-ground", name: "Slot window 600 x 2700", width: 0.6, height: 2.7 },
    { id: "w-glazing-2300", name: "Fixed glazing 2300 x 2600", width: 2.3, height: 2.6 },
    { id: "w-slot-first", name: "Slot window 600 x 2600", width: 0.6, height: 2.6 },
    { id: "w-ribbon-4000", name: "Ribbon window 4000 x 1200", width: 4.0, height: 1.2 },
    { id: "w-1600-high", name: "High window 1600 x 700", width: 1.6, height: 0.7 },
    { id: "w-1000", name: "Casement 1000 x 900", width: 1.0, height: 0.9 },
];

export const DOOR_TYPES: DoorTypeSpec[] = [
    { id: "d-entrance", name: "Smoked oak entrance door 1300 x 2700", width: 1.3, height: 2.7, lining: "Anthracite aluminium", panel: "Smoked oak", operation: doorOperationEnum.singleSwingRight, handle: doorHandleEnum.pullBar, handleMaterial: "Brushed stainless steel" },
    { id: "d-slider-left", name: "Sliding glass door 1800 x 2700", width: 1.8, height: 2.7, lining: "Anthracite aluminium", panel: "Clear glass", operation: doorOperationEnum.slidingToLeft, handle: doorHandleEnum.pullBar, handleMaterial: "Anthracite aluminium" },
    { id: "d-slider-right", name: "Sliding glass door 1800 x 2700", width: 1.8, height: 2.7, lining: "Anthracite aluminium", panel: "Clear glass", operation: doorOperationEnum.slidingToRight, handle: doorHandleEnum.pullBar, handleMaterial: "Anthracite aluminium" },
    { id: "d-slider-2000", name: "Sliding glass door 2000 x 2600", width: 2.0, height: 2.6, lining: "Anthracite aluminium", panel: "Clear glass", operation: doorOperationEnum.slidingToRight, handle: doorHandleEnum.pullBar, handleMaterial: "Anthracite aluminium" },
    { id: "d-interior", name: "Interior door 900 x 2200", width: 0.9, height: 2.2, lining: "White lacquer", panel: "White lacquer", operation: doorOperationEnum.singleSwingLeft, handle: doorHandleEnum.lever, handleMaterial: "Brushed stainless steel" },
    { id: "d-glass", name: "Glass door 900 x 2200", width: GLASS_DOOR_WIDTH, height: 2.2, lining: "Anthracite aluminium", panel: "Clear glass", operation: doorOperationEnum.singleSwingRight, handle: doorHandleEnum.lever, handleMaterial: "Brushed stainless steel" },
];

function closedRun(prefix: string, outline: Point[], names: string[], name?: string): WallRun["walls"] {
    return outline.map((start, index) => {
        const side = names[index] ?? String(index);
        return {
            id: `${prefix}-${side}`,
            name: name ?? `${side.charAt(0).toUpperCase()}${side.slice(1)} wall`,
            start,
            end: outline[(index + 1) % outline.length] ?? start,
        };
    });
}

function loopJoins(walls: WallRun["walls"]): [string, string][] {
    return walls.map((wall, index) => [wall.id, (walls[(index + 1) % walls.length] ?? wall).id]);
}

const SIDES = ["south", "east", "north", "west"];
const FIRST_FLOOR_WALLS = closedRun("ff", FIRST_OUTLINE, SIDES);
const PARAPET_WALLS = closedRun("parapet", rect(FIRST_INTERIOR.x0 - PARAPET_INSET, FIRST_INTERIOR.y0 - PARAPET_INSET, FIRST_INTERIOR.x1 + PARAPET_INSET, FIRST_INTERIOR.y1 + PARAPET_INSET), SIDES, "Parapet");
const TERRACE_EDGE = GX + FACADE_DEPTH;

export const GLASS_RAIL = { shoe: { width: 0.06, depth: 0.12 }, glass: 0.94, cap: { width: 0.05, depth: 0.04 } };
const TERRACE = { house: FIRST_INTERIOR.x1 + FACADE_DEPTH, south: -FACADE_DEPTH + 0.05, east: TERRACE_EDGE - 0.05, north: GY + FACADE_DEPTH - 0.05 };
const VOID_RAIL = { south: VOID.y0 - GLASS_RAIL.shoe.width / 2, east: VOID.x1 + GLASS_RAIL.shoe.width / 2 };

export const RAILS: RailSpec[] = [
    {
        id: "terrace", name: "Terrace balustrade", base: DECK_TOP, external: true,
        runs: [
            { id: "south", along: "x", at: TERRACE.south, from: TERRACE.house, to: TERRACE.east, fromEnd: "flush", toEnd: "butt" },
            { id: "east", along: "y", at: TERRACE.east, from: TERRACE.south, to: TERRACE.north, fromEnd: "lap", toEnd: "lap" },
            { id: "north", along: "x", at: TERRACE.north, from: TERRACE.east, to: TERRACE.house, fromEnd: "butt", toEnd: "flush" },
        ],
    },
    {
        id: "ff-void", name: "Stair balustrade", base: 0, external: false,
        runs: [
            { id: "south", along: "x", at: VOID_RAIL.south, from: VOID.x0, to: VOID_RAIL.east, fromEnd: "flush", toEnd: "lap" },
            { id: "east", along: "y", at: VOID_RAIL.east, from: VOID_RAIL.south, to: VOID.y1, fromEnd: "butt", toEnd: "flush" },
        ],
    },
];

const END_SHIFT = { flush: 0, butt: -1, lap: 1 };

export function railLine(run: RailRun, width: number): [Point, Point] {
    const direction = Math.sign(run.to - run.from);
    const from = run.from - direction * END_SHIFT[run.fromEnd] * width / 2;
    const to = run.to + direction * END_SHIFT[run.toEnd] * width / 2;
    return run.along === "x" ? [[from, run.at], [to, run.at]] : [[run.at, from], [run.at, to]];
}

export const STUDY_GLAZING = { wall: "ff-study-glass", line: 6.23, x0: 5.46, x1: 10.6, panes: 4, frame: { width: 0.05, depth: 0.02 } };
const STUDY_FRAME_FACE = STUDY_GLAZING.line + thicknessOf("Glass partition") / 2 + STUDY_GLAZING.frame.depth;

export const WALL_RUNS: WallRun[] = [
    {
        storey: "ground", layerSet: "Rendered masonry wall", height: UNDER_SLAB, baseOffset: 0, alignment: wallAlignmentEnum.right, external: true,
        walls: [
            { id: "gf-south", name: "South wall", start: [0, 0], end: [FIRST_FLOOR_EAST_FACE, 0] },
            { id: "gf-south-terrace", name: "South wall", start: [FIRST_FLOOR_EAST_FACE, 0], end: [GX, 0], height: FIRST_FLOOR_ELEVATION },
            { id: "gf-east", name: "East wall", start: [GX, 0], end: [GX, GY], height: FIRST_FLOOR_ELEVATION },
            { id: "gf-north-terrace", name: "North wall", start: [GX, GY], end: [FIRST_FLOOR_EAST_FACE, GY], height: FIRST_FLOOR_ELEVATION },
            { id: "gf-north", name: "North wall", start: [FIRST_FLOOR_EAST_FACE, GY], end: [0, GY] },
            { id: "gf-west", name: "West wall", start: [0, GY], end: [0, 0] },
        ],
        joins: [["gf-south-terrace", "gf-east"], ["gf-east", "gf-north-terrace"], ["gf-north", "gf-west"], ["gf-west", "gf-south"]],
    },
    {
        storey: "first", layerSet: "Timber frame wall", height: SLAB_DEPTH + FIRST_FLOOR_WALL_TOP, baseOffset: -SLAB_DEPTH, alignment: wallAlignmentEnum.right, external: true,
        walls: FIRST_FLOOR_WALLS,
        joins: loopJoins(FIRST_FLOOR_WALLS),
    },
    {
        storey: "first", layerSet: "Parapet", height: PARAPET.height, baseOffset: FIRST_FLOOR_WALL_TOP, alignment: wallAlignmentEnum.right, external: true,
        walls: PARAPET_WALLS,
        joins: loopJoins(PARAPET_WALLS),
    },
    {
        storey: "ground", layerSet: "Partition", height: UNDER_SLAB, baseOffset: 0, alignment: wallAlignmentEnum.center, external: false, joins: [],
        walls: [
            { id: "gf-spine", name: "Spine wall", start: [0, 5.0], end: [GX, 5.0] },
            { id: "gf-study-wc", name: "Study partition", start: [3.66, 5.06], end: [3.66, GY] },
            { id: "gf-wc-hall", name: "WC partition", start: [5.36, 5.06], end: [5.36, GY] },
            { id: "gf-hall-utility", name: "Utility partition", start: [10.6, 5.06], end: [10.6, GY] },
        ],
    },
    {
        storey: "first", layerSet: "Partition", height: FIRST_FLOOR_WALL_TOP, baseOffset: 0, alignment: wallAlignmentEnum.center, external: false, joins: [],
        walls: [
            { id: "ff-corridor", name: "Corridor wall", start: [0, 3.6], end: [10.6, 3.6] },
            { id: "ff-bed-1-2", name: "Bedroom partition", start: [3.46, -2.2], end: [3.46, 3.54] },
            { id: "ff-bed-2-3", name: "Bedroom partition", start: [6.96, -2.2], end: [6.96, 3.54] },
            { id: "ff-bath", name: "Bathroom wall", start: [0, 5.0], end: [3.46, 5.0] },
            { id: "ff-bath-wardrobe", name: "Wardrobe partition", start: [3.46, 5.06], end: [3.46, 8.4] },
            { id: "ff-wardrobe", name: "Wardrobe front", start: [3.52, 6.2], end: [5.46, 6.2] },
            { id: "ff-wardrobe-study", name: "Study partition", start: [5.46, STUDY_FRAME_FACE], end: [5.46, 8.4] },
        ],
    },
    {
        storey: "first", layerSet: "Glass partition", height: FIRST_FLOOR_WALL_TOP, baseOffset: 0, alignment: wallAlignmentEnum.center, external: false, joins: [],
        walls: [{ id: STUDY_GLAZING.wall, name: "Study glass wall", start: [STUDY_GLAZING.x0, STUDY_GLAZING.line], end: [STUDY_GLAZING.x1, STUDY_GLAZING.line] }],
    },
    ...RAILS.map((rail): WallRun => ({
        storey: "first", layerSet: "Glass balustrade", height: GLASS_RAIL.glass, baseOffset: rail.base + GLASS_RAIL.shoe.depth, alignment: wallAlignmentEnum.center, external: rail.external, joins: [],
        walls: rail.runs.map((run) => {
            const [start, end] = railLine(run, GLASS_RAIL.shoe.width);
            return { id: `${rail.id}-rail-${run.id}`, name: rail.name, start, end };
        }),
    })),
];

export const WINDOWS: FillingSpec[] = [
    { id: "gf-living-south", name: "Living room glazing", wall: "gf-south", type: "w-glazing-3000", offset: 0.5, sill: 0 },
    { id: "gf-dining-south", name: "Dining glazing", wall: "gf-south", type: "w-glazing-2400", offset: 7.9, sill: 0 },
    { id: "gf-kitchen-ribbon", name: "Kitchen ribbon window", wall: "gf-south-terrace", type: "w-ribbon-3000", offset: 0.1, sill: 1.05 },
    { id: "gf-kitchen-east", name: "Kitchen glazing", wall: "gf-east", type: "w-glazing-2400", offset: 0.6, sill: 0 },
    { id: "gf-utility-east", name: "Utility window", wall: "gf-east", type: "w-1200", offset: 6.2, sill: 1.2 },
    { id: "gf-utility-north", name: "Utility window", wall: "gf-north-terrace", type: "w-1500", offset: 1.1, sill: 1.2 },
    { id: "gf-hall-slot", name: "Hall sidelight", wall: "gf-north", type: "w-slot-ground", offset: 2.8, sill: 0 },
    { id: "gf-wc", name: "WC window", wall: "gf-north", type: "w-800", offset: 6.1, sill: 1.6 },
    { id: "gf-study", name: "Study window", wall: "gf-north", type: "w-1600", offset: 8.4, sill: 0.9 },
    { id: "gf-living-west", name: "Living room glazing", wall: "gf-west", type: "w-glazing-3000", offset: 5.0, sill: 0 },
    { id: "ff-bedroom-1", name: "Bedroom glazing", wall: "ff-south", type: "w-glazing-2300", offset: 0.6, sill: SLAB_DEPTH },
    { id: "ff-bedroom-2", name: "Bedroom glazing", wall: "ff-south", type: "w-glazing-2300", offset: 4.15, sill: SLAB_DEPTH },
    { id: "ff-main-bedroom", name: "Main bedroom glazing", wall: "ff-south", type: "w-glazing-2300", offset: 7.6, sill: SLAB_DEPTH },
    { id: "ff-landing-slot", name: "Landing slot window", wall: "ff-east", type: "w-slot-first", offset: 7.5, sill: SLAB_DEPTH },
    { id: "ff-study", name: "Study ribbon window", wall: "ff-north", type: "w-ribbon-4000", offset: 0.7, sill: SLAB_DEPTH + 0.9 },
    { id: "ff-bathroom-north", name: "Bathroom window", wall: "ff-north", type: "w-1600-high", offset: 8.1, sill: SLAB_DEPTH + 1.4 },
    { id: "ff-bathroom-west", name: "Bathroom window", wall: "ff-west", type: "w-1000", offset: 1.0, sill: SLAB_DEPTH + 1.2 },
    { id: "ff-bedroom-1-west", name: "Bedroom slot window", wall: "ff-west", type: "w-slot-first", offset: 6.8, sill: SLAB_DEPTH },
];

export const DOORS: FillingSpec[] = [
    { id: "gf-entrance", name: "Front door", wall: "gf-north", type: "d-entrance", offset: 3.7, sill: 0 },
    { id: "gf-garden-slider-west", name: "Garden sliding door", wall: "gf-south", type: "d-slider-left", offset: 3.9, sill: 0 },
    { id: "gf-garden-slider-east", name: "Garden sliding door", wall: "gf-south", type: "d-slider-right", offset: 5.7, sill: 0 },
    { id: "gf-study-door", name: "Study door", wall: "gf-spine", type: "d-interior", offset: 2.5, sill: 0 },
    { id: "gf-utility-door", name: "Utility door", wall: "gf-spine", type: "d-interior", offset: 11.6, sill: 0 },
    { id: "gf-wc-door", name: "WC door", wall: "gf-wc-hall", type: "d-interior", offset: 1.3, sill: 0 },
    { id: "ff-terrace-slider", name: "Terrace sliding door", wall: "ff-east", type: "d-slider-2000", offset: 2.8, sill: SLAB_DEPTH },
    { id: "ff-bedroom-1-door", name: "Bedroom door", wall: "ff-corridor", type: "d-interior", offset: 2.2, sill: 0 },
    { id: "ff-bedroom-2-door", name: "Bedroom door", wall: "ff-corridor", type: "d-interior", offset: 5.6, sill: 0 },
    { id: "ff-main-bedroom-door", name: "Main bedroom door", wall: "ff-corridor", type: "d-interior", offset: 7.4, sill: 0 },
    { id: "ff-bathroom-door", name: "Bathroom door", wall: "ff-bath", type: "d-interior", offset: 2.3, sill: 0 },
    { id: "ff-wardrobe-door", name: "Wardrobe door", wall: "ff-wardrobe", type: "d-interior", offset: 0.5, sill: 0 },
    { id: "ff-study-door", name: "Study door", wall: STUDY_GLAZING.wall, type: "d-glass", offset: STUDY_GLAZING.x1 - STUDY_GLAZING.frame.width - GLASS_DOOR_WIDTH - STUDY_GLAZING.x0, sill: 0 },
];

export const PASSAGES: PassageSpec[] = [
    { id: "gf-hall-passage", name: "Hall passage", wall: "gf-spine", offset: 9.5, width: 1.0, height: 2.4 },
];

export const SURROUNDED_WINDOWS = ["ff-bedroom-1", "ff-bedroom-2", "ff-main-bedroom"];
export const SILLED_WINDOWS = ["gf-kitchen-ribbon", "gf-utility-east", "gf-utility-north", "gf-wc", "gf-study", "ff-study", "ff-bathroom-north", "ff-bathroom-west"];

const GARDEN_TERRACE = rect(-FACADE_DEPTH, -5.2, FIRST_INTERIOR.x1 + FACADE_DEPTH, -FACADE_DEPTH);
const ENTRANCE_PATH = rect(5.95, GY + FACADE_DEPTH, 7.35, 16);
const DRIVEWAY = rect(-4.4, 3.6, -FACADE_DEPTH, 16);

export const SLABS: SlabSpec[] = [
    { id: "gf-slab", name: "Ground floor slab", storey: "ground", outline: rect(-FACADE_DEPTH, -FACADE_DEPTH, TERRACE_EDGE, GY + FACADE_DEPTH), layerSet: "Insulated ground slab", topOffset: 0, kind: slabPredefinedTypeEnum.baseSlab, layer: "ground" },
    { id: "ff-slab", name: "First floor slab", storey: "first", outline: FIRST_OUTLINE, holes: [STAIR_VOID], layerSet: "Upper floor slab", topOffset: 0, kind: slabPredefinedTypeEnum.floor, layer: "first" },
    {
        id: "cantilever-soffit", name: "Insulated soffit", storey: "first", layerSet: "Insulated soffit", topOffset: -SLAB_DEPTH, kind: slabPredefinedTypeEnum.notDefined, layer: "first",
        outline: rect(-TIMBER_WALL - CAVITY, FIRST_INTERIOR.y0 - TIMBER_WALL - CAVITY, FIRST_INTERIOR.x1 + TIMBER_WALL + CAVITY, -FACADE_DEPTH),
    },
    { id: "terrace-slab", name: "Roof terrace slab", storey: "first", outline: rect(FIRST_FLOOR_EAST_FACE, 0, GX, GY), layerSet: "Terrace roof slab", topOffset: 0, kind: slabPredefinedTypeEnum.roof, layer: "first" },
    { id: "terrace-deck", name: "Roof terrace decking", storey: "first", outline: rect(FIRST_FLOOR_EAST_FACE, -FACADE_DEPTH, TERRACE_EDGE, GY + FACADE_DEPTH), layerSet: "Decking", topOffset: DECK_TOP, kind: slabPredefinedTypeEnum.floor, layer: "first" },
    { id: "garden-terrace", name: "Garden terrace", storey: "ground", outline: GARDEN_TERRACE, layerSet: "Garden paving", topOffset: 0, kind: slabPredefinedTypeEnum.floor, layer: "garden" },
    { id: "entrance-path", name: "Entrance path", storey: "ground", outline: ENTRANCE_PATH, layerSet: "Garden paving", topOffset: 0, kind: slabPredefinedTypeEnum.floor, layer: "garden" },
    { id: "driveway", name: "Driveway", storey: "ground", outline: DRIVEWAY, layerSet: "Driveway", topOffset: 0, kind: slabPredefinedTypeEnum.floor, layer: "garden" },
];

export const ROOF = {
    id: "roof", name: "Warm flat roof", layerSet: "Warm flat roof", baseOffset: FIRST_FLOOR_WALL_TOP,
    outline: rect(FIRST_INTERIOR.x0 - PARAPET_INSET, FIRST_INTERIOR.y0 - PARAPET_INSET, FIRST_INTERIOR.x1 + PARAPET_INSET, FIRST_INTERIOR.y1 + PARAPET_INSET),
};

export const CARPORT = {
    x0: -4.4,
    x1: -FACADE_DEPTH,
    y0: 3.6,
    y1: GY + FACADE_DEPTH,
    clearance: 2.6,
    upstand: 0.02,
    beam: { width: 0.08, depth: 0.3 },
    joist: { width: 0.07, depth: 0.18, count: 9 },
    ledger: 0.06,
    post: 0.1,
};

export function thicknessOf(layerSet: string): number {
    return LAYER_SETS.find((candidate) => candidate.name === layerSet)?.layers.reduce((sum, layer) => sum + layer.thickness, 0) ?? 0;
}

export const CARPORT_DECK_BOTTOM = CARPORT.clearance + CARPORT.beam.depth - CARPORT.upstand - thicknessOf("Carport roof");

export const TERRAIN_OUTLINE = rect(-60, -60, 75, 65);
export const HARD_SURFACES: Point[] = [
    [-FACADE_DEPTH, -5.2], [FIRST_INTERIOR.x1 + FACADE_DEPTH, -5.2], [FIRST_INTERIOR.x1 + FACADE_DEPTH, -FACADE_DEPTH], [TERRACE_EDGE, -FACADE_DEPTH],
    [TERRACE_EDGE, GY + FACADE_DEPTH], [7.35, GY + FACADE_DEPTH], [7.35, 16], [5.95, 16], [5.95, GY + FACADE_DEPTH], [-FACADE_DEPTH, GY + FACADE_DEPTH],
    [-FACADE_DEPTH, 16], [-4.4, 16], [-4.4, 3.6], [-FACADE_DEPTH, 3.6],
];

export const TREES: TreeSpec[] = [
    { id: "tree-birch-1", species: "Silver birch", position: [-11, -10], height: 11, crown: 2.4, trunk: 0.16, foliage: "Birch foliage", bark: "Birch bark" },
    { id: "tree-birch-2", species: "Silver birch", position: [-7.5, -15], height: 9, crown: 2.0, trunk: 0.13, foliage: "Birch foliage", bark: "Birch bark" },
    { id: "tree-maple-1", species: "Norway maple", position: [25, 2], height: 10, crown: 3.4, trunk: 0.24, foliage: "Maple foliage", bark: "Bark" },
    { id: "tree-maple-2", species: "Norway maple", position: [20, 18], height: 8.5, crown: 3.0, trunk: 0.2, foliage: "Maple foliage", bark: "Bark" },
    { id: "tree-pine-1", species: "Scots pine", position: [-14, 13], height: 13, crown: 2.3, trunk: 0.22, foliage: "Pine needles", bark: "Bark" },
    { id: "tree-pine-2", species: "Scots pine", position: [3, 25], height: 12, crown: 2.1, trunk: 0.2, foliage: "Pine needles", bark: "Bark" },
    { id: "tree-maple-3", species: "Norway maple", position: [-17, -1], height: 7.5, crown: 2.8, trunk: 0.18, foliage: "Maple foliage", bark: "Bark" },
];

export const STAIR = {
    risers: 16,
    riser: FIRST_FLOOR_ELEVATION / 16,
    going: 0.26,
    bottomEdge: 9.4,
    sides: [5.11, 6.11] as const,
    treadDepth: 0.3,
    treadThickness: 0.06,
    voidEdge: 5.48,
};

export const ROOMS: RoomSpec[] = [
    { id: "room-living", number: "0.01", name: "Living, dining and kitchen", storey: "ground", outline: rect(0, 0, 14.2, 4.94), height: 2.9 },
    { id: "room-study", number: "0.02", name: "Study", storey: "ground", outline: rect(0, 5.06, 3.6, 8.4), height: 2.9 },
    { id: "room-wc", number: "0.03", name: "Shower room", storey: "ground", outline: rect(3.72, 5.06, 5.3, 8.4), height: 2.9 },
    { id: "room-hall", number: "0.04", name: "Entrance hall", storey: "ground", outline: rect(5.42, 5.06, 10.54, 8.4), height: 2.9 },
    { id: "room-utility", number: "0.05", name: "Utility and pantry", storey: "ground", outline: rect(10.66, 5.06, 14.2, 8.4), height: 2.9 },
    { id: "room-bedroom-1", number: "1.01", name: "Bedroom", storey: "first", outline: rect(0, -2.2, 3.4, 3.54), height: 3.0 },
    { id: "room-bedroom-2", number: "1.02", name: "Bedroom", storey: "first", outline: rect(3.52, -2.2, 6.9, 3.54), height: 3.0 },
    { id: "room-main-bedroom", number: "1.03", name: "Main bedroom", storey: "first", outline: rect(7.02, -2.2, 10.6, 3.54), height: 3.0 },
    { id: "room-corridor", number: "1.04", name: "Corridor", storey: "first", outline: rect(0, 3.66, 10.6, 4.94), height: 3.0 },
    { id: "room-landing", number: "1.05", name: "Landing", storey: "first", outline: rect(3.52, 5.06, 5.48, 6.14), height: 3.0 },
    { id: "room-bathroom", number: "1.06", name: "Bathroom", storey: "first", outline: rect(0, 5.06, 3.4, 8.4), height: 3.0 },
    { id: "room-wardrobe", number: "1.07", name: "Wardrobe", storey: "first", outline: rect(3.52, 6.26, 5.4, 8.4), height: 3.0 },
    { id: "room-office", number: "1.08", name: "Home office", storey: "first", outline: rect(5.52, 6.26, 10.6, 8.4), height: 3.0 },
];

const BOOLEAN = "IfcBoolean";
const U_VALUE = "IfcThermalTransmittanceMeasure";
const EXTERNAL = { name: "IsExternal", value: true, type: BOOLEAN };
const INTERNAL = { name: "IsExternal", value: false, type: BOOLEAN };
const NOT_LOAD_BEARING = { name: "LoadBearing", value: false, type: BOOLEAN };
const LOAD_BEARING = { name: "LoadBearing", value: true, type: BOOLEAN };

function wallsOf(layerSet: string, external: boolean): string[] {
    return WALL_RUNS.filter((run) => run.layerSet === layerSet && run.external === external).flatMap((run) => run.walls.map((wall) => wall.id));
}

function uValue(value: number): PropertySetSpec["properties"][number] {
    return { name: "ThermalTransmittance", value, type: U_VALUE };
}

export const PROPERTY_SETS: PropertySetSpec[] = [
    { name: "Pset_WallCommon", elements: wallsOf("Rendered masonry wall", true), properties: [EXTERNAL, LOAD_BEARING, uValue(0.12)] },
    { name: "Pset_WallCommon", elements: wallsOf("Timber frame wall", true), properties: [EXTERNAL, LOAD_BEARING, uValue(0.11)] },
    { name: "Pset_WallCommon", elements: wallsOf("Parapet", true), properties: [EXTERNAL, NOT_LOAD_BEARING] },
    { name: "Pset_WallCommon", elements: wallsOf("Partition", false), properties: [INTERNAL, NOT_LOAD_BEARING, { name: "AcousticRating", value: "Rw 45 dB", type: "IfcLabel" }] },
    { name: "Pset_WallCommon", elements: [...wallsOf("Glass partition", false), ...wallsOf("Glass balustrade", false)], properties: [INTERNAL, NOT_LOAD_BEARING] },
    { name: "Pset_SlabCommon", elements: ["gf-slab", "terrace-slab"], properties: [EXTERNAL, LOAD_BEARING, uValue(0.13)] },
    { name: "Pset_SlabCommon", elements: ["cantilever-soffit"], properties: [EXTERNAL, NOT_LOAD_BEARING, uValue(0.19)] },
    { name: "Pset_RoofCommon", elements: [ROOF.id], properties: [EXTERNAL, uValue(0.07)] },
    { name: "Pset_WindowCommon", elements: WINDOWS.map((window) => window.id), properties: [EXTERNAL, uValue(0.75), { name: "GlazingAreaFraction", value: 0.88, type: "IfcPositiveRatioMeasure" }] },
    { name: "Pset_DoorCommon", elements: ["gf-entrance", "gf-garden-slider-west", "gf-garden-slider-east", "ff-terrace-slider"], properties: [EXTERNAL, uValue(0.8)] },
];
house/details.ts
import IFC = Bit.Inputs.IFC;
import Base = Bit.Inputs.Base;
import {
    BOARD, CANTILEVER_DRIP, CARPORT, CARPORT_DECK_BOTTOM, CAVITY, COPING, DECK_TOP, GLASS_RAIL, RAILS, STUDY_GLAZING, DOOR_TYPES, DOORS, FACADE_DEPTH, FIRST_FLOOR_ELEVATION, FIRST_FLOOR_EAST_FACE, FIRST_FLOOR_WALL_TOP, FIRST_INTERIOR,
    GROUND_INTERIOR, PARAPET_INSET, PARAPET_TOP, ROOF_DEPTH, SILLED_WINDOWS, SLAB_DEPTH, STAIR, SURROUNDED_WINDOWS, TIMBER_WALL, WALL_RUNS, WINDOW_TYPES, WINDOWS, railLine, thicknessOf,
} from "./house-plan";
import type { AssemblySpec, DetailSpec, FacadeLine, FacadeOpening, FacadeSide, FillingSpec, WallSide } from "./house-types";

const { memberPredefinedTypeEnum } = IFC;
const BOARD_PLANE = TIMBER_WALL + CAVITY + BOARD.thickness / 2;
const FLASHING = { height: 0.06, projection: 0.03 };
const ABOVE_FLASHING = -SLAB_DEPTH + FLASHING.height;
const SURROUND = { thickness: 0.03, projection: 0.15 };
const SILL = { thickness: 0.03, drip: 0.04 };
const FRAME_DEPTH = 0.09;
const MIN_PIECE = 0.02;
const CORNER_BOARD_LIMIT = FIRST_INTERIOR.y0 - TIMBER_WALL - CAVITY;
const ROOF_TOP = FIRST_FLOOR_WALL_TOP + ROOF_DEPTH;
const SOLAR = { width: 1.13, length: 1.72, thickness: 0.04, lift: 0.15, tilt: 10, gap: 0.05, rows: [-1.2, 1.6], columns: 7, firstColumn: 1.2 };
const SOLAR_RAIL = { width: 0.06, inset: 0.1, clearance: 0.003 };
const STRINGER = { thickness: 0.012, depth: 0.22, below: 0.08, past: 0.03 };
const HANDRAIL = { radius: 0.021, height: 0.9, wallGap: 0.02 };
const BALUSTER = { radius: 0.008, below: 0.05, underRail: 0.015 };
const DOWNPIPE = { radius: 0.05, standoff: 0.09, positions: [0.45, 10.5] };
const HOPPER = { height: 0.25, width: 0.22, depth: 0.17, belowCoping: 0.51 };
const CANOPY = {
    from: 5.75, to: 8.35, projection: 1.4, underside: 2.75, cover: 0.02, upstand: 0.02,
    fascia: { thickness: 0.03, depth: 0.14 },
    slat: { width: 0.06, gap: 0.02, depth: 0.03, above: 0.03 },
    lights: [6.665, 7.915], light: { radius: 0.035, depth: 0.01, out: 0.7 },
};

const SOLAR_ARRAY = "solar-array";

const FIRST_SIDES: FacadeSide[] = [
    { wall: "ff-south", along: "x", line: FIRST_INTERIOR.y0, outward: -1, from: -FACADE_DEPTH, to: FIRST_INTERIOR.x1 + FACADE_DEPTH, start: FIRST_INTERIOR.x0, direction: 1 },
    { wall: "ff-north", along: "x", line: FIRST_INTERIOR.y1, outward: 1, from: -FACADE_DEPTH, to: FIRST_INTERIOR.x1 + FACADE_DEPTH, start: FIRST_INTERIOR.x1, direction: -1 },
    { wall: "ff-west", along: "y", line: FIRST_INTERIOR.x0, outward: -1, from: CORNER_BOARD_LIMIT, to: FIRST_INTERIOR.y1 + TIMBER_WALL + CAVITY, start: FIRST_INTERIOR.y1, direction: -1 },
    { wall: "ff-east", along: "y", line: FIRST_INTERIOR.x1, outward: 1, from: CORNER_BOARD_LIMIT, to: FIRST_INTERIOR.y1 + TIMBER_WALL + CAVITY, start: FIRST_INTERIOR.y0, direction: 1 },
];

function sideOfWall(wall: string): WallSide {
    const run = WALL_RUNS.find((candidate) => candidate.walls.some((spec) => spec.id === wall));
    const spec = run?.walls.find((candidate) => candidate.id === wall);
    if (!run || !spec) {
        throw new Error(`The plan has no wall '${wall}'`);
    }
    const along = spec.start[1] === spec.end[1] ? "x" : "y";
    const axis = along === "x" ? 0 : 1;
    const across = along === "x" ? 1 : 0;
    const direction = spec.end[axis] > spec.start[axis] ? 1 : -1;
    const outward = along === "x" ? -direction as 1 | -1 : direction;
    const thickness = run.layerSet === "Timber frame wall" ? TIMBER_WALL : FACADE_DEPTH;
    return { wall, along, line: spec.start[across], outward, start: spec.start[axis], direction, thickness, baseOffset: run.baseOffset };
}

function sizeOf(filling: FillingSpec): { width: number; height: number } {
    const type = WINDOW_TYPES.find((candidate) => candidate.id === filling.type) ?? DOOR_TYPES.find((candidate) => candidate.id === filling.type);
    if (!type) {
        throw new Error(`The plan has no type '${filling.type}'`);
    }
    return type;
}

function openingOf(filling: FillingSpec, side: FacadeLine & { baseOffset?: number }): FacadeOpening {
    const { width, height } = sizeOf(filling);
    const from = side.direction > 0 ? side.start + filling.offset : side.start - filling.offset - width;
    const bottom = filling.sill + (side.baseOffset ?? -SLAB_DEPTH);
    return { id: filling.id, from, to: from + width, bottom, top: bottom + height };
}

function point(side: FacadeLine, u: number, depth: number, z: number): Base.Point3 {
    const across = side.line + side.outward * depth;
    return side.along === "x" ? [u, across, z] : [across, u, z];
}

function boardBottom(side: FacadeSide, to: number): number {
    if (side.wall === "ff-south") {
        return CANTILEVER_DRIP;
    }
    if (side.wall === "ff-north") {
        return to > FIRST_FLOOR_EAST_FACE ? DECK_TOP : ABOVE_FLASHING;
    }
    if (to <= -FACADE_DEPTH) {
        return CANTILEVER_DRIP;
    }
    return side.wall === "ff-west" ? ABOVE_FLASHING : DECK_TOP;
}

function cutAround(bottom: number, top: number, from: number, to: number, openings: readonly FacadeOpening[]): [number, number][] {
    let pieces: [number, number][] = [[bottom, top]];
    for (const opening of openings) {
        if (to <= opening.from || from >= opening.to) {
            continue;
        }
        pieces = pieces.flatMap(([low, high]): [number, number][] => {
            if (high <= opening.bottom || low >= opening.top) {
                return [[low, high]];
            }
            const below: [number, number] = [low, Math.min(high, opening.bottom)];
            const above: [number, number] = [Math.max(low, opening.top), high];
            return [below, above].filter(([a, b]) => b - a > MIN_PIECE);
        });
    }
    return pieces;
}

function facadeOpenings(side: FacadeSide): FacadeOpening[] {
    return [...WINDOWS, ...DOORS].filter((filling) => filling.wall === side.wall).map((filling) => openingOf(filling, side));
}

function claddingOf(side: FacadeSide): string {
    return `${side.wall}-cladding`;
}

function facingOf(side: FacadeSide): string {
    const facing = side.wall.replace(/^ff-/, "");
    return facing.charAt(0).toUpperCase() + facing.slice(1);
}

function claddingBoards(): DetailSpec[] {
    const boards: DetailSpec[] = [];
    const pitch = BOARD.width + BOARD.gap;
    for (const side of FIRST_SIDES) {
        const openings = facadeOpenings(side);
        const count = Math.floor((side.to - side.from + BOARD.gap) / pitch);
        const first = side.from + (side.to - side.from - (count * pitch - BOARD.gap)) / 2;
        for (let index = 0; index < count; index++) {
            const from = first + index * pitch;
            const to = from + BOARD.width;
            const middle = (from + to) / 2;
            cutAround(boardBottom(side, to), PARAPET_TOP, from, to, openings).forEach(([bottom, top], piece) => {
                boards.push({
                    id: `${side.wall}-board-${index}-${piece}`, name: "Cladding board", storey: "first", layer: "first", material: "Charred larch", assembly: claddingOf(side),
                    start: point(side, middle, BOARD_PLANE, bottom), end: point(side, middle, BOARD_PLANE, top),
                    width: BOARD.width, depth: BOARD.thickness, rotation: side.along === "y" ? 90 : 0, kind: memberPredefinedTypeEnum.plate,
                });
            });
        }
    }
    return boards;
}

function flashings(): DetailSpec[] {
    const outer = FACADE_DEPTH + FLASHING.projection;
    const middle = (TIMBER_WALL + outer) / 2;
    const width = outer - TIMBER_WALL;
    const z = -SLAB_DEPTH + FLASHING.height / 2;
    const [, north, west] = FIRST_SIDES as [FacadeSide, FacadeSide, FacadeSide, FacadeSide];
    const flashing = (id: string, start: Base.Point3, end: Base.Point3): DetailSpec => ({
        id, name: "Floor line flashing", storey: "first", layer: "first", material: "Anthracite aluminium", start, end, width, depth: FLASHING.height,
    });
    return [
        flashing("flashing-north", point(north, -outer, middle, z), point(north, FIRST_FLOOR_EAST_FACE, middle, z)),
        flashing("flashing-west", point(west, -FACADE_DEPTH, middle, z), point(west, FIRST_INTERIOR.y1 + TIMBER_WALL, middle, z)),
    ];
}

function windowSurrounds(): DetailSpec[] {
    const t = SURROUND.thickness;
    const inner = TIMBER_WALL / 2 + FRAME_DEPTH / 2;
    const outer = FACADE_DEPTH + SURROUND.projection;
    const middle = (inner + outer) / 2;
    const width = outer - inner;
    const [side] = FIRST_SIDES as [FacadeSide];
    return WINDOWS.filter((window) => SURROUNDED_WINDOWS.includes(window.id)).flatMap((window) => {
        const opening = openingOf(window, side);
        const plate = (suffix: string, start: Base.Point3, end: Base.Point3, horizontal: boolean): DetailSpec => ({
            id: `${window.id}-surround-${suffix}`, name: "Window surround", storey: "first", layer: "first", material: "Anthracite aluminium",
            start, end, width: horizontal ? width : t, depth: horizontal ? t : width,
        });
        return [
            plate("head", point(side, opening.from, middle, opening.top - t / 2), point(side, opening.to, middle, opening.top - t / 2), true),
            plate("sill", point(side, opening.from, middle, opening.bottom + t / 2), point(side, opening.to, middle, opening.bottom + t / 2), true),
            plate("left", point(side, opening.from + t / 2, middle, opening.bottom + t), point(side, opening.from + t / 2, middle, opening.top - t), false),
            plate("right", point(side, opening.to - t / 2, middle, opening.bottom + t), point(side, opening.to - t / 2, middle, opening.top - t), false),
        ];
    });
}

function windowSills(): DetailSpec[] {
    return WINDOWS.filter((window) => SILLED_WINDOWS.includes(window.id)).map((window): DetailSpec => {
        const side = sideOfWall(window.wall);
        const opening = openingOf(window, side);
        const inner = side.thickness / 2 + FRAME_DEPTH / 2;
        const outer = FACADE_DEPTH + SILL.drip;
        const z = opening.bottom + SILL.thickness / 2;
        const storey = window.wall.startsWith("ff") ? "first" : "ground";
        return {
            id: `${window.id}-sill`, name: "Window sill", storey, layer: storey, material: "Anthracite aluminium",
            start: point(side, opening.from, (inner + outer) / 2, z), end: point(side, opening.to, (inner + outer) / 2, z), width: outer - inner, depth: SILL.thickness,
        };
    });
}

function copings(): DetailSpec[] {
    const inner = PARAPET_INSET - COPING.drip;
    const outer = FACADE_DEPTH + COPING.drip;
    const middle = (inner + outer) / 2;
    const z = PARAPET_TOP + COPING.thickness / 2;
    return FIRST_SIDES.map((side): DetailSpec => {
        const [from, to] = side.along === "x" ? [-outer, FIRST_INTERIOR.x1 + outer] : [FIRST_INTERIOR.y0 - inner, FIRST_INTERIOR.y1 + inner];
        return {
            id: `${side.wall}-coping`, name: "Parapet coping", storey: "first", layer: "first", material: "Anthracite aluminium",
            start: point(side, from, middle, z), end: point(side, to, middle, z), width: outer - inner, depth: COPING.thickness,
        };
    });
}

function solarArray(): DetailSpec[] {
    const tilt = SOLAR.tilt * Math.PI / 180;
    const slope = Math.tan(tilt);
    const run = SOLAR.length * Math.cos(tilt);
    const base = ROOF_TOP + SOLAR.lift;
    const halfDepth = SOLAR.thickness / 2 / Math.cos(tilt);
    const left = SOLAR.firstColumn - SOLAR.width / 2;
    const right = SOLAR.firstColumn + (SOLAR.columns - 1) * (SOLAR.width + SOLAR.gap) + SOLAR.width / 2;
    return SOLAR.rows.flatMap((y, row) => {
        const rail = (id: string, near: number): DetailSpec => {
            const top = base + (near - y) * slope - halfDepth - SOLAR_RAIL.clearance;
            const middle = near + SOLAR_RAIL.width / 2;
            return {
                id, name: "Mounting rail", storey: "first", layer: "roof", material: "Anthracite aluminium", assembly: SOLAR_ARRAY,
                start: [left, middle, (ROOF_TOP + top) / 2], end: [right, middle, (ROOF_TOP + top) / 2], width: SOLAR_RAIL.width, depth: top - ROOF_TOP,
            };
        };
        const panels = Array.from({ length: SOLAR.columns }, (_, column): DetailSpec => {
            const x = SOLAR.firstColumn + column * (SOLAR.width + SOLAR.gap);
            return {
                id: `solar-panel-${row}-${column}`, name: "Solar panel", storey: "first", layer: "roof", material: "Solar module", assembly: SOLAR_ARRAY,
                start: [x, y, base], end: [x, y + run, base + run * slope], width: SOLAR.width, depth: SOLAR.thickness, kind: memberPredefinedTypeEnum.plate,
            };
        });
        return [...panels, rail(`solar-rail-front-${row}`, y + SOLAR_RAIL.inset), rail(`solar-rail-back-${row}`, y + run - SOLAR_RAIL.inset - SOLAR_RAIL.width)];
    });
}

function stairParts(): DetailSpec[] {
    const [near, far] = STAIR.sides;
    const slope = STAIR.riser / STAIR.going;
    const nosing = (x: number): number => STAIR.riser + (STAIR.bottomEdge - x) * slope;
    const treadMiddle = (step: number): number => STAIR.bottomEdge - (step - 0.5) * STAIR.going;
    const steps = Array.from({ length: STAIR.risers - 1 }, (_, index) => index + 1);
    const top = STAIR.voidEdge + 0.07;
    const bottom = STAIR.bottomEdge + STRINGER.past;
    const railBottom = STAIR.bottomEdge;
    const railY = far + STRINGER.thickness + BALUSTER.radius;
    const stringerY = far + STRINGER.thickness / 2;
    const steel = { storey: "ground", layer: "ground", material: "Blackened steel" } as const;
    return [
        ...steps.map((step): DetailSpec => ({
            id: `stair-tread-${step}`, name: `Tread ${step}`, storey: "ground", layer: "ground", material: "Oak",
            start: [treadMiddle(step), near, step * STAIR.riser - STAIR.treadThickness / 2], end: [treadMiddle(step), far, step * STAIR.riser - STAIR.treadThickness / 2],
            width: STAIR.treadDepth, depth: STAIR.treadThickness,
        })),
        {
            ...steel, id: "stair-stringer", name: "Stair stringer", kind: memberPredefinedTypeEnum.stringer, width: STRINGER.thickness, depth: STRINGER.depth,
            start: [bottom, stringerY, nosing(bottom) - STRINGER.below], end: [top, stringerY, nosing(top) - STRINGER.below],
        },
        ...([["stair-handrail-wall", near + HANDRAIL.wallGap], ["stair-handrail-open", railY]] as const).map(([id, y]): DetailSpec => ({
            ...steel, id, name: "Handrail", radius: HANDRAIL.radius,
            start: [railBottom, y, nosing(railBottom) + HANDRAIL.height], end: [top, y, nosing(top) + HANDRAIL.height],
        })),
        ...steps.map((step): DetailSpec => ({
            ...steel, id: `stair-baluster-${step}`, name: "Baluster", radius: BALUSTER.radius, kind: memberPredefinedTypeEnum.post,
            start: [treadMiddle(step), railY, step * STAIR.riser - BALUSTER.below],
            end: [treadMiddle(step), railY, nosing(treadMiddle(step)) + HANDRAIL.height - HANDRAIL.radius - BALUSTER.underRail],
        })),
    ];
}

function rainwater(): DetailSpec[] {
    const y = GROUND_INTERIOR.y1 + FACADE_DEPTH + DOWNPIPE.standoff;
    const hopperBottom = FIRST_FLOOR_ELEVATION + PARAPET_TOP - HOPPER.belowCoping;
    const aluminium = { storey: "ground", layer: "ground", material: "Anthracite aluminium" } as const;
    return DOWNPIPE.positions.flatMap((x, index): DetailSpec[] => [
        { ...aluminium, id: `downpipe-${index}`, name: "Downpipe", radius: DOWNPIPE.radius, start: [x, y, 0], end: [x, y, hopperBottom] },
        { ...aluminium, id: `rainwater-hopper-${index}`, name: "Rainwater hopper", start: [x, y, hopperBottom], end: [x, y, hopperBottom + HOPPER.height], width: HOPPER.width, depth: HOPPER.depth },
    ]);
}

function entranceCanopy(): DetailSpec[] {
    const { from, to, fascia, slat, light } = CANOPY;
    const wall = GROUND_INTERIOR.y1 + FACADE_DEPTH;
    const front = wall + CANOPY.projection;
    const t = fascia.thickness;
    const fasciaZ = CANOPY.underside + fascia.depth / 2;
    const coverZ = CANOPY.underside + fascia.depth - CANOPY.upstand - CANOPY.cover / 2;
    const slatZ = CANOPY.underside + slat.above + slat.depth / 2;
    const inner = { from: from + t, to: to - t, front: front - t };
    const pitch = slat.width + slat.gap;
    const count = Math.floor((inner.to - inner.from + slat.gap) / pitch);
    const first = inner.from + (inner.to - inner.from - (count * pitch - slat.gap)) / 2 + slat.width / 2;
    const metal = { storey: "ground", layer: "ground", material: "Anthracite aluminium" } as const;
    return [
        { ...metal, id: "canopy-fascia-front", name: "Canopy fascia", start: [from, front - t / 2, fasciaZ], end: [to, front - t / 2, fasciaZ], width: t, depth: fascia.depth, beam: true },
        { ...metal, id: "canopy-fascia-left", name: "Canopy fascia", start: [from + t / 2, wall, fasciaZ], end: [from + t / 2, inner.front, fasciaZ], width: t, depth: fascia.depth, beam: true },
        { ...metal, id: "canopy-fascia-right", name: "Canopy fascia", start: [to - t / 2, wall, fasciaZ], end: [to - t / 2, inner.front, fasciaZ], width: t, depth: fascia.depth, beam: true },
        {
            ...metal, id: "canopy-cover", name: "Canopy cover", kind: memberPredefinedTypeEnum.plate,
            start: [inner.from, (wall + inner.front) / 2, coverZ], end: [inner.to, (wall + inner.front) / 2, coverZ], width: inner.front - wall, depth: CANOPY.cover,
        },
        ...Array.from({ length: count }, (_, index): DetailSpec => ({
            id: `canopy-slat-${index}`, name: "Canopy soffit slat", storey: "ground", layer: "ground", material: "Smoked oak",
            start: [first + index * pitch, wall, slatZ], end: [first + index * pitch, inner.front, slatZ], width: slat.width, depth: slat.depth,
        })),
        ...CANOPY.lights.map((x, index): DetailSpec => ({
            id: `canopy-light-${index}`, name: "Downlight", storey: "ground", layer: "ground", material: "Brushed stainless steel", radius: light.radius,
            start: [x, wall + light.out, CANOPY.underside + slat.above - light.depth], end: [x, wall + light.out, CANOPY.underside + slat.above],
        })),
    ];
}

function carportFrame(): DetailSpec[] {
    const { x0, x1, y0, y1, beam, joist } = CARPORT;
    const beamZ = CARPORT.clearance + beam.depth / 2;
    const joistZ = CARPORT_DECK_BOTTOM - joist.depth / 2;
    const inner = { x0: x0 + beam.width, y0: y0 + beam.width, y1: y1 - beam.width };
    const ledgerX = x1 - CARPORT.ledger / 2;
    const spacing = (inner.y1 - inner.y0) / (joist.count + 1);
    const steel = { storey: "ground", layer: "garden", material: "Blackened steel", beam: true } as const;
    return [
        { ...steel, id: "carport-beam-outer", name: "Carport edge beam", start: [x0 + beam.width / 2, y0, beamZ], end: [x0 + beam.width / 2, y1, beamZ], width: beam.width, depth: beam.depth },
        { ...steel, id: "carport-beam-south", name: "Carport edge beam", start: [inner.x0, y0 + beam.width / 2, beamZ], end: [x1, y0 + beam.width / 2, beamZ], width: beam.width, depth: beam.depth },
        { ...steel, id: "carport-beam-north", name: "Carport edge beam", start: [inner.x0, y1 - beam.width / 2, beamZ], end: [x1, y1 - beam.width / 2, beamZ], width: beam.width, depth: beam.depth },
        { ...steel, id: "carport-ledger", name: "Carport wall ledger", start: [ledgerX, inner.y0, joistZ], end: [ledgerX, inner.y1, joistZ], width: CARPORT.ledger, depth: joist.depth },
        ...Array.from({ length: joist.count }, (_, index): DetailSpec => ({
            id: `carport-joist-${index}`, name: "Carport joist", storey: "ground", layer: "garden", material: "Glulam spruce", beam: true,
            start: [inner.x0, inner.y0 + (index + 1) * spacing, joistZ], end: [x1 - CARPORT.ledger, inner.y0 + (index + 1) * spacing, joistZ], width: joist.width, depth: joist.depth,
        })),
    ];
}

function glassRails(): DetailSpec[] {
    const { shoe, cap, glass } = GLASS_RAIL;
    return RAILS.flatMap((rail) => rail.runs.flatMap((run): DetailSpec[] => {
        const [shoeStart, shoeEnd] = railLine(run, shoe.width);
        const [capStart, capEnd] = railLine(run, cap.width);
        const shoeZ = rail.base + shoe.depth / 2;
        const capZ = rail.base + shoe.depth + glass + cap.depth / 2;
        return [
            {
                id: `${rail.id}-shoe-${run.id}`, name: "Balustrade base shoe", storey: "first", layer: "first", material: "Anthracite aluminium",
                start: [...shoeStart, shoeZ], end: [...shoeEnd, shoeZ], width: shoe.width, depth: shoe.depth,
            },
            {
                id: `${rail.id}-cap-${run.id}`, name: "Balustrade handrail", storey: "first", layer: "first", material: "Brushed stainless steel",
                start: [...capStart, capZ], end: [...capEnd, capZ], width: cap.width, depth: cap.depth,
            },
        ];
    }));
}

function studyGlazing(): DetailSpec[] {
    const { wall, line, x0, panes, frame } = STUDY_GLAZING;
    const w = frame.width;
    const studyDoor = DOORS.find((filling) => filling.wall === wall);
    if (!studyDoor) {
        throw new Error(`The plan has no door in '${wall}'`);
    }
    const door = openingOf(studyDoor, { wall, along: "x", line, outward: 1, start: x0, direction: 1, baseOffset: 0 });
    const pane = (door.from - w - (x0 + w) - (panes - 1) * w) / panes;
    const mullions = Array.from({ length: panes - 1 }, (_, index) => x0 + w + (index + 1) * pane + index * w);
    const verticals = [x0, ...mullions, door.from - w, door.to];
    const bays = verticals.flatMap((left, index) => {
        const right = verticals[index + 1];
        return right === undefined ? [] : [{ from: left + w, to: right, door: left + w === door.from }];
    });
    const faces = [line - thicknessOf("Glass partition") / 2 - frame.depth / 2, line + thicknessOf("Glass partition") / 2 + frame.depth / 2];
    const steel = { storey: "first", layer: "first", material: "Blackened steel" } as const;
    return faces.flatMap((y, face): DetailSpec[] => [
        ...verticals.map((left, index): DetailSpec => ({
            ...steel, id: `study-mullion-${face}-${index}`, name: "Glazing mullion", kind: memberPredefinedTypeEnum.mullion,
            start: [left + w / 2, y, 0], end: [left + w / 2, y, FIRST_FLOOR_WALL_TOP], width: w, depth: frame.depth,
        })),
        ...bays.flatMap((bay, index): DetailSpec[] => {
            const rails: [string, number][] = [["transom", door.top + w / 2], ["head", FIRST_FLOOR_WALL_TOP - w / 2], ...(bay.door ? [] : [["sill", w / 2] as [string, number]])];
            return rails.map(([kind, z]): DetailSpec => ({
                ...steel, id: `study-${kind}-${face}-${index}`, name: "Glazing rail", start: [bay.from, y, z], end: [bay.to, y, z], width: frame.depth, depth: w,
            }));
        }),
    ]);
}

export function houseAssemblies(): AssemblySpec[] {
    return [
        ...FIRST_SIDES.map((side) => ({ id: claddingOf(side), name: `${facingOf(side)} cladding`, objectType: "Cladding" })),
        { id: SOLAR_ARRAY, name: "Solar array", objectType: "Solar array" },
    ];
}

export function houseDetails(): DetailSpec[] {
    return [...claddingBoards(), ...flashings(), ...windowSurrounds(), ...windowSills(), ...copings(), ...solarArray(), ...stairParts(), ...rainwater(), ...entranceCanopy(), ...carportFrame(), ...glassRails(), ...studyGlazing()];
}
house/build-house.ts
import IFC = Bit.Inputs.IFC;
import Base = Bit.Inputs.Base;
import {
    CARPORT, CARPORT_DECK_BOTTOM, DOOR_TYPES, DOORS, FIRST_FLOOR_ELEVATION, HARD_SURFACES, LAYER_SETS, MATERIALS, PASSAGES, PROPERTY_SETS, ROOF, ROOMS, SLABS, TERRAIN_OUTLINE, TREES, WALL_RUNS, WINDOW_TYPES, WINDOWS, rect,
} from "./house-plan";
import { houseAssemblies, houseDetails } from "./details";
import type { DetailSpec, HouseIfc, HouseModel, Layer } from "./house-types";

type Model = IFC.IfcModelPointer;

const FRAME = { frameMaterial: "Anthracite aluminium", glassMaterial: "Clear glass", frameThickness: 0.07, frameDepth: 0.09, glassThickness: 0.03 };
const LINING = { liningThickness: 0.06, liningDepth: 0.12, panelThickness: 0.05 };

export class HouseAuthor {
    private model!: Model;
    private readonly layers = new Map<string, Layer>();
    private readonly ifc: HouseIfc;
    private readonly progress: (message: string) => void;

    constructor(ifc: HouseIfc, progress: (message: string) => void) {
        this.ifc = ifc;
        this.progress = progress;
    }

    async build(): Promise<HouseModel> {
        const ifc = this.ifc;
        this.progress("Setting up the project");
        this.model = await ifc.model.create({ name: "Family house", lengthUnit: IFC.lengthUnitEnum.metre, seed: "ifc-family-house" });
        this.model = await ifc.spatial.addStorey({ model: this.model, id: "ground", name: "Ground floor", elevation: 0 });
        this.model = await ifc.spatial.addStorey({ model: this.model, id: "first", name: "First floor", elevation: FIRST_FLOOR_ELEVATION });
        await this.addMaterials();
        this.progress("Raising the walls");
        await this.addWalls();
        this.progress("Laying the floors");
        await this.addSlabs();
        this.progress("Fitting windows and doors");
        await this.addWindowsAndDoors();
        this.progress("Roofing and the carport");
        await this.addRoof();
        await this.addCarport();
        this.progress("Cladding, flashings, the stair and the solar array");
        const details = houseDetails();
        await this.addDetails(details);
        await this.addAssemblies(details);
        this.progress("Shaping the garden");
        await this.addSite();
        this.progress("Naming the rooms");
        await this.addRooms();
        await this.addProperties();
        this.progress("Measuring quantities");
        this.model = await ifc.quantities.compute({ model: this.model });
        return { model: this.model, layers: await this.layersByGlobalId(), rooms: ROOMS };
    }

    private remember(id: string, layer: Layer): string {
        this.layers.set(id, layer);
        return id;
    }

    private async layersByGlobalId(): Promise<Map<string, Layer>> {
        const entries = await Promise.all([...this.layers].map(async ([id, layer]) => [await this.ifc.model.globalIdOf({ model: this.model, id }), layer] as const));
        return new Map(entries);
    }

    private async addMaterials(): Promise<void> {
        const ifc = this.ifc;
        for (const material of MATERIALS) {
            this.model = await ifc.materials.add({ model: this.model, ...material });
        }
        for (const layerSet of LAYER_SETS) {
            this.model = await ifc.materials.addLayerSet({ model: this.model, ...layerSet });
        }
        for (const type of WINDOW_TYPES) {
            this.model = await ifc.windows.addType({ model: this.model, ...type, ...FRAME });
        }
        for (const type of DOOR_TYPES) {
            this.model = await ifc.doors.addType({
                model: this.model, id: type.id, name: type.name, width: type.width, height: type.height, ...LINING, operation: type.operation,
                liningMaterial: type.lining, panelMaterial: type.panel, handle: type.handle, handleMaterial: type.handleMaterial,
            });
        }
    }

    private async addWalls(): Promise<void> {
        const ifc = this.ifc;
        for (const run of WALL_RUNS) {
            const layer: Layer = run.storey === "ground" ? "ground" : "first";
            for (const wall of run.walls) {
                this.model = await ifc.walls.add({
                    model: this.model, storey: run.storey, id: this.remember(wall.id, layer), name: wall.name, start: wall.start, end: wall.end,
                    height: wall.height ?? run.height, baseOffset: run.baseOffset, layerSet: run.layerSet, alignment: run.alignment,
                    predefinedType: run.external ? IFC.wallPredefinedTypeEnum.standard : IFC.wallPredefinedTypeEnum.partitioning,
                });
            }
            for (const [wall, other] of run.joins) {
                this.model = await ifc.walls.connect({ model: this.model, wall, other });
            }
        }
    }

    private async addSlabs(): Promise<void> {
        for (const slab of SLABS) {
            this.model = await this.ifc.slabs.add({
                model: this.model, storey: slab.storey, id: this.remember(slab.id, slab.layer), name: slab.name,
                outline: slab.outline, holes: slab.holes, layerSet: slab.layerSet, topOffset: slab.topOffset, predefinedType: slab.kind,
            });
        }
    }

    private layerOfWall(wall: string): Layer {
        return this.layers.get(wall) ?? "ground";
    }

    private async addWindowsAndDoors(): Promise<void> {
        const ifc = this.ifc;
        for (const window of WINDOWS) {
            this.model = await ifc.windows.add({ model: this.model, wall: window.wall, windowType: window.type, id: this.remember(window.id, this.layerOfWall(window.wall)), name: window.name, offset: window.offset, sill: window.sill });
        }
        for (const door of DOORS) {
            this.model = await ifc.doors.add({ model: this.model, wall: door.wall, doorType: door.type, id: this.remember(door.id, this.layerOfWall(door.wall)), name: door.name, offset: door.offset, sill: door.sill });
        }
        for (const passage of PASSAGES) {
            this.model = await ifc.openings.add({ model: this.model, wall: passage.wall, id: passage.id, name: passage.name, offset: passage.offset, sill: 0, width: passage.width, height: passage.height });
        }
    }

    private async addRoof(): Promise<void> {
        this.model = await this.ifc.roofs.add({
            model: this.model, storey: "first", id: this.remember(ROOF.id, "roof"), name: ROOF.name,
            outline: ROOF.outline, kind: IFC.roofKindEnum.flat, layerSet: ROOF.layerSet, baseOffset: ROOF.baseOffset,
        });
    }

    private async addCarport(): Promise<void> {
        const ifc = this.ifc;
        const { x0, x1, y0, y1, beam, post } = CARPORT;
        this.model = await ifc.roofs.add({
            model: this.model, storey: "ground", id: this.remember("carport-roof", "garden"), name: "Carport roof",
            outline: rect(x0 + beam.width, y0 + beam.width, x1, y1 - beam.width), kind: IFC.roofKindEnum.flat, layerSet: "Carport roof", baseOffset: CARPORT_DECK_BOTTOM,
        });
        const corners: Base.Point2[] = [[x0 + post / 2, y0 + post / 2], [x0 + post / 2, y1 - post / 2]];
        for (const [index, position] of corners.entries()) {
            this.model = await ifc.columns.add({
                model: this.model, storey: "ground", id: this.remember(`carport-post-${index + 1}`, "garden"), name: "Carport post",
                position, height: CARPORT.clearance, width: post, depth: post, material: "Blackened steel",
            });
        }
    }

    private async addDetails(details: DetailSpec[]): Promise<void> {
        const { profileKindEnum, memberPredefinedTypeEnum } = IFC;
        for (const detail of details) {
            const common = {
                model: this.model, storey: detail.storey, id: this.remember(detail.id, detail.layer), name: detail.name, start: detail.start, end: detail.end, material: detail.material,
                profile: detail.radius === undefined ? profileKindEnum.rectangle : profileKindEnum.circle, width: detail.width, depth: detail.depth, radius: detail.radius, rotation: detail.rotation ?? 0,
            };
            this.model = detail.beam
                ? await this.ifc.beams.add(common)
                : await this.ifc.members.add({ ...common, predefinedType: detail.kind ?? memberPredefinedTypeEnum.member });
        }
    }

    private async addAssemblies(details: DetailSpec[]): Promise<void> {
        const { elementAssemblyPredefinedTypeEnum } = IFC;
        for (const assembly of houseAssemblies()) {
            this.model = await this.ifc.assemblies.add({
                model: this.model, id: assembly.id, name: assembly.name, parts: details.filter((detail) => detail.assembly === assembly.id).map((detail) => detail.id),
                predefinedType: elementAssemblyPredefinedTypeEnum.userDefined, objectType: assembly.objectType,
            });
        }
    }

    private async addSite(): Promise<void> {
        const site = this.ifc.site;
        this.model = await site.addTerrain({ model: this.model, id: this.remember("terrain", "garden"), name: "Garden", outline: TERRAIN_OUTLINE, holes: [HARD_SURFACES], material: "Lawn" });
        for (const tree of TREES) {
            this.model = await site.addTree({
                model: this.model, id: this.remember(tree.id, "garden"), name: tree.species, species: tree.species, position: tree.position,
                height: tree.height, crownRadius: tree.crown, trunkRadius: tree.trunk, crownMaterial: tree.foliage, trunkMaterial: tree.bark,
            });
        }
    }

    private async addRooms(): Promise<void> {
        for (const room of ROOMS) {
            this.model = await this.ifc.spaces.add({ model: this.model, storey: room.storey, id: room.id, name: room.number, longName: room.name, outline: room.outline, height: room.height });
        }
    }

    private async addProperties(): Promise<void> {
        for (const set of PROPERTY_SETS) {
            this.model = await this.ifc.properties.addSet({ model: this.model, elements: set.elements, name: set.name, properties: set.properties });
        }
    }
}
scene/draw-house.ts
import type { HouseModel } from "../house/house-types";

export interface DrawnElement {
    readonly mesh: BABYLON.Mesh;
    readonly glass: boolean;
    readonly terrain: boolean;
}

const SHARP_ANGLE = 40;
const FALLBACK_COLOUR = "#d6d3cc";
const LEAST_OPACITY = 0.18;

function hexOf(rgba: readonly number[]): string {
    return "#" + rgba.slice(0, 3).map((channel) => Math.round(channel * 255).toString(16).padStart(2, "0")).join("");
}

export async function drawHouse(house: HouseModel): Promise<DrawnElement[]> {
    const recipe = await bitbybit.ifc.geometry.recipe({ model: house.model });
    const solids = await bitbybit.manifold.recipes.build({ recipe, adjustZtoY: true, emptyWhenFailed: true });
    const meshes = await bitbybit.manifold.decomposeManifoldsOrCrossSections({ manifoldsOrCrossSections: solids, minSharpAngle: SHARP_ANGLE });
    const drawn = await Promise.all(recipe.roots.map(async (root, index): Promise<DrawnElement | undefined> => {
        const mesh = meshes[index];
        if (!mesh) {
            return undefined;
        }
        const rgba = Array.isArray(root.tag["rgba"]) ? root.tag["rgba"] as number[] : undefined;
        const alpha = rgba?.[3] ?? 1;
        const options = new Bit.Inputs.Draw.DrawManifoldOrCrossSectionOptions();
        options.faceColour = rgba ? hexOf(rgba) : FALLBACK_COLOUR;
        options.faceOpacity = Math.max(LEAST_OPACITY, alpha);
        options.drawTwoSided = false;
        options.minSharpAngle = SHARP_ANGLE;
        const drawnMesh = await bitbybit.draw.drawAnyAsync({ entity: mesh as Bit.Inputs.Manifold.DecomposedManifoldMeshDto, options }) as BABYLON.Mesh;
        return { mesh: drawnMesh, glass: alpha < 1, terrain: root.tag["type"] === "IfcGeographicElement" };
    }));
    return drawn.filter((element): element is DrawnElement => element !== undefined);
}
scene/environment.ts
import type { DrawnElement } from "./draw-house";

const SUNRISE = 6;
const SUNSET = 20;
const START_TIME = 16.5;
const NOON_ELEVATION = 62;
const SKY_SIZE = 900;
const DAWN = new BABYLON.Color3(1, 0.62, 0.38);
const DAY = new BABYLON.Color3(1, 0.97, 0.92);
const AMBIENT_DUSK = new BABYLON.Color3(0.75, 0.62, 0.6);
const AMBIENT_DAY = new BABYLON.Color3(0.85, 0.9, 1);
const HAZE_DUSK = new BABYLON.Color3(0.55, 0.42, 0.4);
const HAZE_DAY = new BABYLON.Color3(0.72, 0.8, 0.9);

function clockOf(hours: number): string {
    const minutes = Math.round(hours * 60);
    return String(Math.floor(minutes / 60)).padStart(2, "0") + ":" + String(minutes % 60).padStart(2, "0");
}

function sunDirection(hours: number): BABYLON.Vector3 {
    const day = (hours - SUNRISE) / (SUNSET - SUNRISE);
    const elevation = BABYLON.Tools.ToRadians(Math.max(-6, Math.sin(Math.PI * day) * NOON_ELEVATION));
    const azimuth = BABYLON.Tools.ToRadians(80 + 200 * day);
    return new BABYLON.Vector3(Math.cos(elevation) * Math.sin(azimuth), Math.sin(elevation), -Math.cos(elevation) * Math.cos(azimuth));
}

export function setUpEnvironment(drawn: readonly DrawnElement[]): void {
    const scene = bitbybit.babylon.scene.getScene();
    scene.lights.slice().forEach((light) => { light.dispose(); });

    const ambient = new BABYLON.HemisphericLight("ambient", new BABYLON.Vector3(0, 1, 0), scene);
    ambient.groundColor = new BABYLON.Color3(0.32, 0.3, 0.27);

    const sun = new BABYLON.DirectionalLight("sun", new BABYLON.Vector3(-1, -2, -1), scene);
    sun.shadowMinZ = 1;
    sun.shadowMaxZ = 300;
    const shadows = new BABYLON.ShadowGenerator(4096, sun);
    shadows.usePercentageCloserFiltering = true;
    shadows.filteringQuality = BABYLON.ShadowGenerator.QUALITY_HIGH;
    shadows.bias = 0.0005;
    shadows.normalBias = 0.02;
    shadows.darkness = 0.1;
    drawn.forEach((element) => {
        [element.mesh, ...element.mesh.getChildMeshes(false)].forEach((part) => {
            part.receiveShadows = true;
            if (!element.glass && !element.terrain) {
                shadows.addShadowCaster(part, false);
            }
        });
    });

    const sky = bitbybit.babylon.material.skyMaterial.create({ luminance: 1, turbidity: 6, rayleigh: 2, mieCoefficient: 0.004, mieDirectionalG: 0.85, distance: 500, inclination: 0.3, azimuth: 0.25, useSunPosition: true, sunPosition: [0, 100, 0], cameraOffset: [0, 0, 0], up: [0, 1, 0], dithering: true });
    const skybox = BABYLON.MeshBuilder.CreateBox("sky", { size: SKY_SIZE, sideOrientation: BABYLON.Mesh.BACKSIDE }, scene);
    skybox.material = sky;
    skybox.infiniteDistance = true;
    skybox.applyFog = false;

    const probe = new BABYLON.ReflectionProbe("sky-light", 256, scene);
    probe.refreshRate = BABYLON.RenderTargetTexture.REFRESHRATE_RENDER_ONCE;
    probe.renderList?.push(skybox);
    scene.environmentTexture = probe.cubeTexture;
    scene.environmentIntensity = 0.55;

    scene.imageProcessingConfiguration.toneMappingEnabled = true;
    scene.imageProcessingConfiguration.toneMappingType = BABYLON.ImageProcessingConfiguration.TONEMAPPING_ACES;
    scene.imageProcessingConfiguration.exposure = 1.1;
    scene.imageProcessingConfiguration.contrast = 1.15;
    scene.fogMode = BABYLON.Scene.FOGMODE_EXP2;
    scene.fogDensity = 0.0025;

    const setTimeOfDay = (hours: number): void => {
        const toSun = sunDirection(hours);
        const height = Math.max(0, toSun.y);
        const warmth = Math.min(1, height * 3);
        sky.sunPosition = toSun.scale(100);
        sky.luminance = 0.25 + 0.75 * Math.min(1, height * 4);
        sun.direction = toSun.negate();
        sun.position = toSun.scale(80);
        sun.intensity = 4.2 * Math.pow(height, 0.5);
        sun.diffuse = BABYLON.Color3.Lerp(DAWN, DAY, warmth);
        ambient.intensity = 0.15 + 0.3 * Math.min(1, height * 2.5);
        ambient.diffuse = BABYLON.Color3.Lerp(AMBIENT_DUSK, AMBIENT_DAY, warmth);
        scene.fogColor = BABYLON.Color3.Lerp(HAZE_DUSK, HAZE_DAY, warmth);
        scene.clearColor = scene.fogColor.toColor4(1);
        probe.cubeTexture.resetRefreshCounter();
    };

    const ui = BABYLON.GUI.AdvancedDynamicTexture.CreateFullscreenUI("time-of-day", true, scene);
    const panel = new BABYLON.GUI.StackPanel("time-panel");
    panel.width = "320px";
    panel.height = "86px";
    panel.paddingBottom = "20px";
    panel.background = "#00000066";
    panel.verticalAlignment = BABYLON.GUI.Control.VERTICAL_ALIGNMENT_BOTTOM;
    ui.addControl(panel);

    const clock = new BABYLON.GUI.TextBlock("time-label", "");
    clock.height = "30px";
    clock.color = "#ffffff";
    clock.fontSize = 18;
    panel.addControl(clock);

    const slider = new BABYLON.GUI.Slider("time-slider");
    slider.minimum = SUNRISE - 0.5;
    slider.maximum = SUNSET + 0.5;
    slider.value = START_TIME;
    slider.height = "24px";
    slider.width = "280px";
    slider.color = "#f5c46b";
    slider.background = "#ffffff55";
    slider.thumbColor = "#ffffff";
    slider.onValueChangedObservable.add((hours) => {
        clock.text = "Time of day " + clockOf(hours);
        setTimeOfDay(hours);
    });
    panel.addControl(slider);

    clock.text = "Time of day " + clockOf(START_TIME);
    setTimeOfDay(START_TIME);
}

The files of the project​

The script is a TypeScript project of several files, which the editor shows in its file tree: open it to read and change any of them. The house itself is the house of the IFC example for Vite and three.js, examples/vite/threejs/ifc-house, file for file:

  • house/house-types.ts - the shapes of the plan's data: a wall run, a window or door, a slab, a detail.
  • house/house-plan.ts - the plan, all in metres: the materials and the layered build-ups of walls, floors and the roof, the window and door types, the wall runs of both storeys, every window and door, the slabs, the rooms and their property sets.
  • house/details.ts - the details worked out from the plan: cladding boards around the openings, flashings, window surrounds and sills, copings, the stair, rainwater pipes, the entrance canopy, the carport frame, glass rails and the solar array.
  • house/build-house.ts - HouseAuthor, which writes all of it into one model with bitbybit.ifc: storeys, materials, walls, slabs, windows and doors, the roof, the carport, the details, assemblies, the garden, rooms, properties and quantities. The console shows each stage as it starts.
  • scene/draw-house.ts - the geometry: ifc.geometry.recipe describes the model as data, manifold.recipes.build builds every element as a mesh solid, which is fast for a model this size, and each element is drawn in the colour of its material, glass translucent.
  • scene/environment.ts - the setting, in BabylonJS: a sky material whose sun follows the time of day, a sun light with soft shadows, the sky reflected in every material, ACES tone mapping, a light haze, and the slider at the bottom of the view that moves the sun from morning to evening.
  • main.ts - runs the three in turn and places the camera.

To export the model as an IFC file, give bitbybit.ifc.model.write the model HouseAuthor returns; IFC in the npm packages shows the same house in an app of your own.
